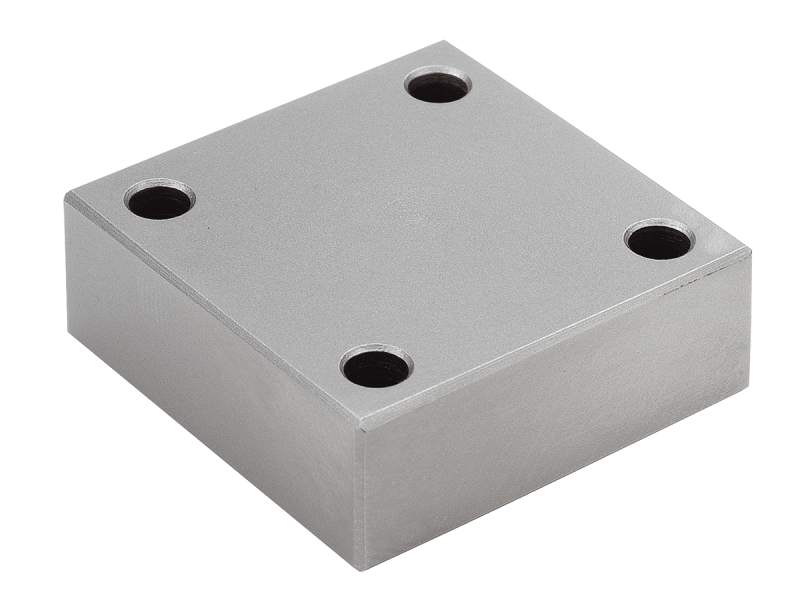

Spacer Block, For CN26C 90° Rail Carrier

26 mm Optical Rail Carriers

The RH-40 Spacer Block works with the CN26C 90° Carrier on an X26 Optical Rail.

Specifications

Technical Specs

Type
Spacer Block for 90° Carrier
Material
Steel
Height
10.5 mm
Length
28 mm

Width
28 mm

Type
Spacer Block for 90° Carrier
Material
Steel
Height
10.5 mm
Length
28 mm

Width
28 mm

Resources & Downloads

2D Product Drawings

RH-40-S(73 kB, PDF)
