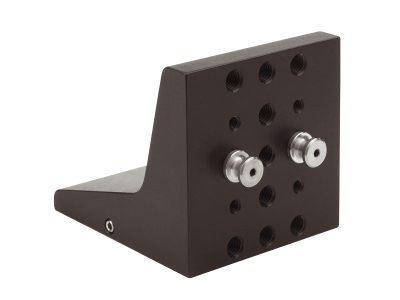

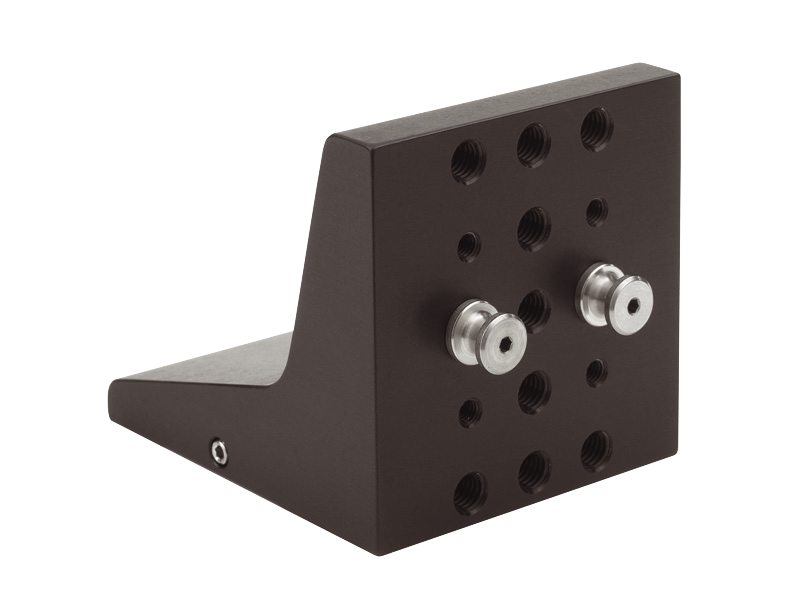

90 Degree Angle Bracket, M-460P Series

90 Degree Angle Bracket, M-460P Series

Model: M-460P-90BK

$143

In Stock

Compare

Add to List

Product Series Overview

460P Series 90 Degree Angle Brackets

The M-460P-90BK 90 Degree Angle Bracket is for M-460P Series Metric High-Performance Modular Ball Bearing Linear Stages.

Specifications

Technical Specs

Material

Aluminum
Thread Type

M4 and M6

Material

Aluminum
Thread Type

M4 and M6

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

460P-90BK-S (122.7 kB, PDF)

Other

M-460P-90BK RoHS Certificate (279 kB, PDF)
M-460P-90BK_RoHS2021.pdf (685.2 kB, PDF)
