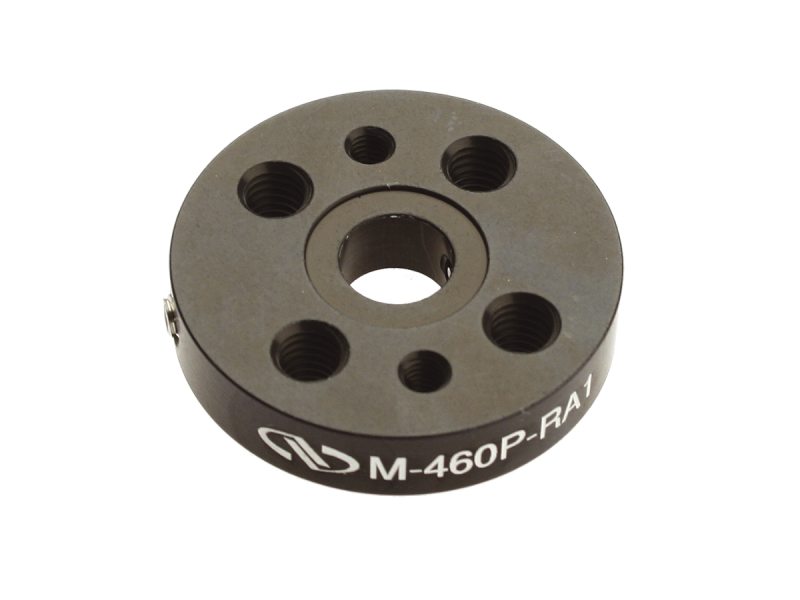

Peg Rotation Base, 31.8 mm Diameter
Peg Rotation Base, 31.8 mm Diameter
Model: M-460P-RA1
In Stock
Product Series Overview
Peg Rotation BasesThe M-460P-RA1 31.8 mm Diameter Peg Rotation Base provides simple manual rotation for a variety of components. This rotation base attaches via one of the M-PEG-10 pegs which mount to M6 threaded holes. Once in place, the rotation adaptor can be locked in position by tightening the two set screws located on the circumference of the base.
Resources & Downloads
2D Product Drawings
460P-RA1 DWG-S(90.8 kB, PDF)
Other
M-460P-RA1 RoHS Certificate(280.7 kB, PDF) M-460P-RA1_RoHS2021.pdf(691.2 kB, PDF)
