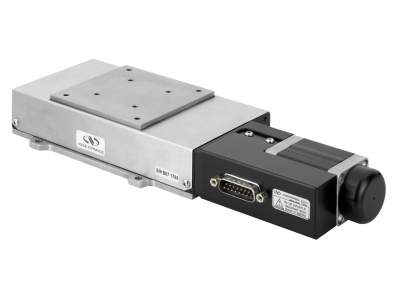

Motorized Vertical Stage, 4.5 mm Travel, Full Step Drive, 30 N Load, M4
Motorized Vertical Stage, 4.5 mm Travel, Full Step Drive, 30 N Load, M4
Model: UZS80PP
10 Weeks
Product Series Overview
UZ Series Precision Vertical StagesThe UZS80PP Vertical Stage offers 4.5 mm vertical adjustment of loads up to 30 N and mounts on top of our UTS series linear stages. The UZS80PP stepper motor version is a more economical version for less demanding applications. When used with motion controllers with high micro-step capability, like the XPS, ESP302 or SMC100PP, low noise operation and very small incremental motions are guaranteed. The UZS80PP does not use encoder feedback, but reaches a position by the number of commanded steps and micro-steps. For this purpose, the stepper motor is directly attached to the worm screw.
Specifications
- Travel Range4.5 mm
- Minimum Incremental Motion0.20 µm
- Maximum Speed2 mm/s
- Centered Load Capacity30 N
- Accuracy, Typical±0.35 µm
- Accuracy, Guaranteed±2.0 µm
- Bi-directional Repeatability, Typical±0.5 µm
- Bi-directional Repeatability, Guaranteed±2.2 µm
- Uni-directional Repeatability, Typical±0.25 µm
- Uni-directional Repeatability, Guaranteed±0.7 µm
- Drive Screw Pitch0.8 mm
- Limit SwitchesOptical
- OriginOptical, centered
- Origin Repeatability±2 µm
- ConnectorsDB15 Male
- Pitch, Typical±37 µrad
- Pitch, Guaranteed±75 µrad
- Compliance in Pitch100 µrad/Nm
- Roll, Typical±50 µrad
- Roll, Guaranteed±100 µrad
- Compliance in Roll80 µrad/Nm
- Cable Length3 m
- Thread TypeM4
- Weight2.8 kg
- MTBF20,000 h (25% load, 10% duty cycle)
- ComplianceRoHS 3, CE
Resources & Downloads
Manuals
UZS80 Vertical Stages User's Manual(1.4 MB, PDF)
