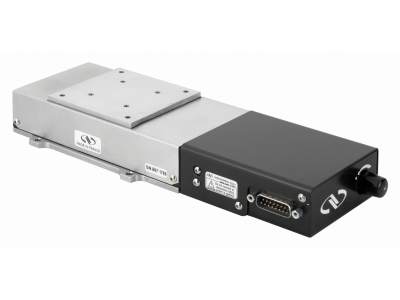

Motorized Vertical Stage, 4.5 mm Travel, DC Drive, 30 N Load, M4

The UZS80CC Vertical Stage offers 4.5 mm vertical adjustment of loads up to 30 N and mounts on top of our UTS series linear stages. The UZS80CC DC motor version provides high speed adjustments at up to 4 mm/s speed and accurate bi-directional positioning capabilities. It features a high resolution encoder with index pulse that is directly attached on the lead screw. This eliminates most of the possible error sources associated with indirect read feedback devices. When used with motion controllers with high micro-step capability, like the XPS, ESP302 or SMC100CC, low noise operation and very small incremental motions are guaranteed.

Specifications

Technical Specs

Travel Range
4.5 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
4 mm/s

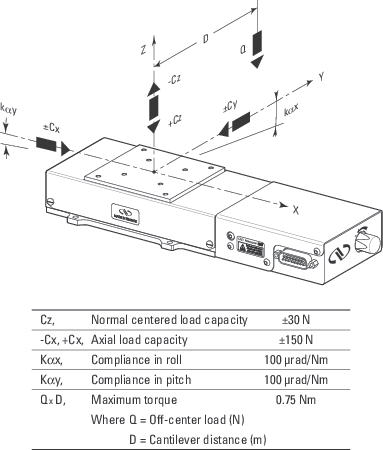

Centered Load Capacity
30 N
Accuracy, Typical
±0.35 µm
Accuracy, Guaranteed
±1.5 µm
Bi-directional Repeatability, Typical
±0.4 µm
Bi-directional Repeatability, Guaranteed
±1.7 µm
Uni-directional Repeatability, Typical
±0.25 µm
Uni-directional Repeatability, Guaranteed
±0.7 µm
Drive Screw Pitch
0.8 mm
Encoder Resolution
0.05 µm
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±1 µm

Connectors
DB15 Male
Pitch, Typical
±37 µrad
Pitch, Guaranteed
±75 µrad
Compliance in Pitch
100 µrad/Nm
Roll, Typical
±50 µrad
Roll, Guaranteed
±100 µrad
Compliance in Roll
80 µrad/Nm
Cable Length
3 m
Thread Type
M4
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Compliance
RoHS 3, CE

Travel Range
4.5 mm
Minimum Incremental Motion
0.20 µm
Maximum Speed
4 mm/s
Centered Load Capacity
30 N
Accuracy, Typical
±0.35 µm
Accuracy, Guaranteed
±1.5 µm
Bi-directional Repeatability, Typical
±0.4 µm
Bi-directional Repeatability, Guaranteed
±1.7 µm
Uni-directional Repeatability, Typical
±0.25 µm
Uni-directional Repeatability, Guaranteed
±0.7 µm
Drive Screw Pitch
0.8 mm
Encoder Resolution
0.05 µm
Limit Switches
Optical
Origin
Optical, centered
Origin Repeatability
±1 µm

Connectors
DB15 Male
Pitch, Typical
±37 µrad
Pitch, Guaranteed
±75 µrad
Compliance in Pitch
100 µrad/Nm
Roll, Typical
±50 µrad
Roll, Guaranteed
±100 µrad
Compliance in Roll
80 µrad/Nm
Cable Length
3 m
Thread Type
M4
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Compliance
RoHS 3, CE

Resources & Downloads

2D Product Drawings

UZS80CC(417.1 kB, PDF)

Literature

UZ Data Sheet.pdf(2.2 MB, PDF)

Manuals

UZS80 Vertical Stages User's Manual(1.4 MB, PDF)
