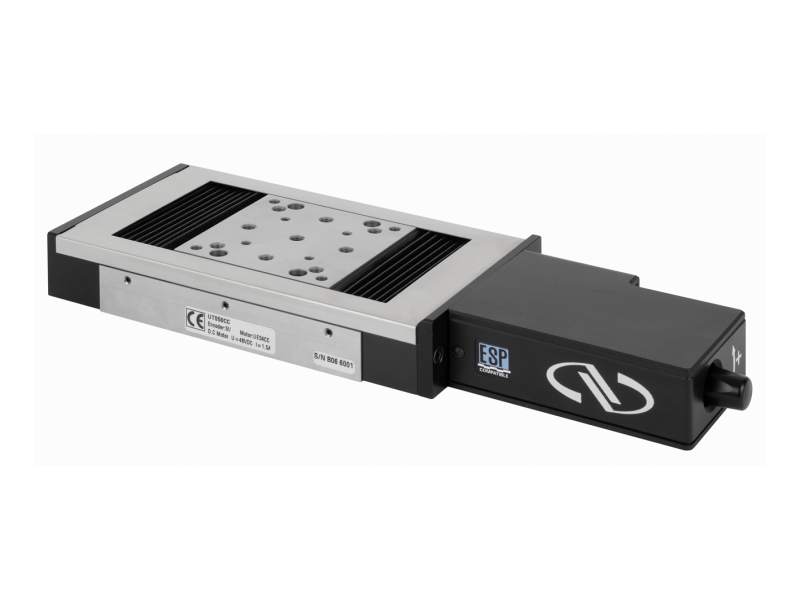

Motorized Linear Stage, Steel, 50 mm Travel, DC Motor, M4 and M6

Model: UTS50CC

$5,335

Compare

Product Series Overview

The UTS50CC is DC motor driven and has a 50 mm travel range. This UTS stage incorporates a low-profile design with excellent stiffness and thermal stability, making it ideal for environments where temperature is not very well controlled. It also features an ultra-high resolution encoder mounted on the diamond-corrected lead screw, a reduction belt providing precise incremental motion capability and high dynamic speed control, and a precision lapped nut which includes anti-backlash preloading and a sophisticated decoupling system.

Specifications

Technical Specs

Travel Range
50 mm
Maximum Speed
40 mm/s
Minimum Incremental Motion
300 nm
Centered Load Capacity
200 N
Axial Load Capacity (+Cx)
50 N
Inverse Axial Load Capacity (-Cx)
-10 N
Accuracy, Typical
±1.1 µm
Accuracy, Guaranteed
±2.25 µm
Uni-directional Repeatability, Typical
±0.20 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Bi-directional Repeatability, Typical
±0.6 µm
Bi-directional Repeatability, Guaranteed
±1.75 µm
Pitch, Typical
±17 µrad
Pitch, Guaranteed
±37 µrad
Compliance in Pitch
15 µrad/Nm

Yaw, Typical
±12 µrad
Yaw, Guaranteed
±25 µrad
Compliance in Yaw
15 µrad/Nm
Compliance in Roll
10 µrad/Nm
Drive Type
DC Motor
Origin Repeatability
±0.5 µm
Cable Length
3 m
Vacuum Compatibility
No
Thread Type
M4 and M6
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Maximum Power Consumption
40 W
Compliance
RoHS 3, CE

Travel Range
50 mm
Maximum Speed
40 mm/s
Minimum Incremental Motion
300 nm
Centered Load Capacity
200 N
Axial Load Capacity (+Cx)
50 N
Inverse Axial Load Capacity (-Cx)
-10 N
Accuracy, Typical
±1.1 µm
Accuracy, Guaranteed
±2.25 µm
Uni-directional Repeatability, Typical
±0.20 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Bi-directional Repeatability, Typical
±0.6 µm
Bi-directional Repeatability, Guaranteed
±1.75 µm
Pitch, Typical
±17 µrad
Pitch, Guaranteed
±37 µrad
Compliance in Pitch
15 µrad/Nm

Yaw, Typical
±12 µrad
Yaw, Guaranteed
±25 µrad
Compliance in Yaw
15 µrad/Nm
Compliance in Roll
10 µrad/Nm
Drive Type
DC Motor
Origin Repeatability
±0.5 µm
Cable Length
3 m
Vacuum Compatibility
No
Thread Type
M4 and M6
Weight
2.8 kg
MTBF
20,000 h (25% load, 10% duty cycle)
Maximum Power Consumption
40 W
Compliance
RoHS 3, CE
