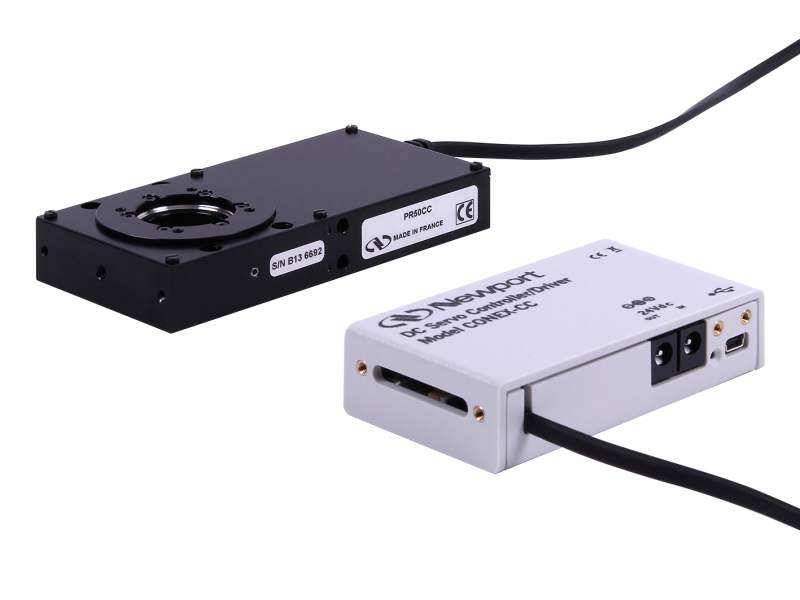

Motorized Rotation Stage, PR50CC, Integrated with CONEX-CC Controller

CONEX-PR50CC is a compact rotation stage integrated with a CONEX-CC controller designed to rotate optical components up to 1-inch diameter, such as polarizers, wave plates, or wedges. The small size allows use in confined spaces, such as laser cavities, disk texturing machines, or manufacturing areas for fiber optical components. PR50CC is faster, but has lower resolution than SR50CC. The CONEX-CC is a very compact and inexpensive linear driver that has been optimized for Newport’s low power DC servo motor driven devices. Compared to cheaper PWM amplifiers, the CONEX-CC delivers smoother motion with less electrical noise and significantly less motor heating.

The CONEX^™ controller comes with a USB cable and a CONEX-PS-CB for daisy-chaining modules. Power supply to be ordered separately. For OEM applications, an optional retainer to secure the USB and power cables is available.

Compact Controller and Stage

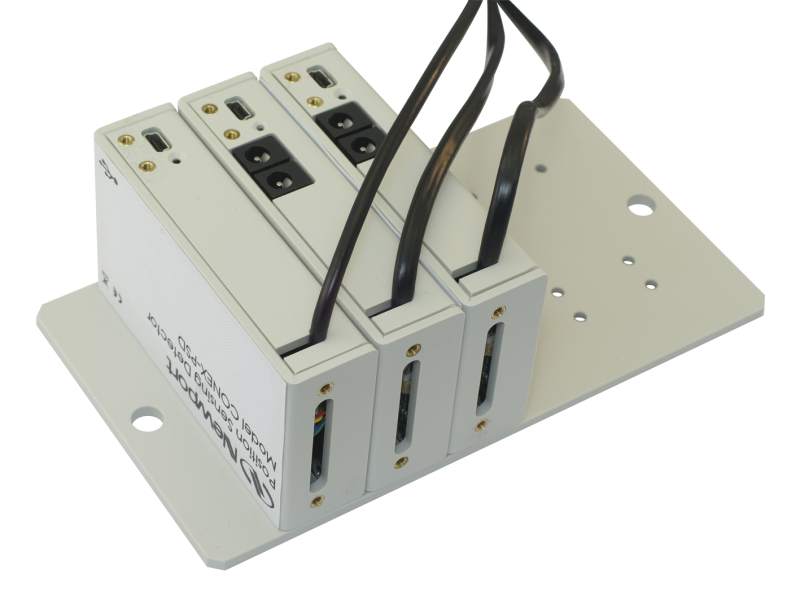

In terms of size, the CONEX-CC controller is comparable to a deck of cards. Depending on the motor type, up to 3 CONEX-PP or 6 CONEX-CC can fit on a CONEX-BP baseplate. Both controller and stage are compact and ideal for space-confined or access-limited applications. Newport also offers the stand alone version of these Low Profile Rotation Stages.

Scalable Architecture

The CONEX rotation units can be connected via daisy chain to create either multi-axis DC systems or multi-axis PP systems. For added convenience, the power can be shared with up to 5 CONEX-CC modules using the optional CONEX-PS-CB power chain cable. This allows for a convenient low cost multi-axis system. Additionally, analog and digital inputs can be implemented into the controller through the CONEX-IOD.

Out-of-the-box Control

For out-of-the box control, the CONEX controller is preconfigured and delivered with the motion device. To start moving a sample or sensor, it simply requires plugging in the power supply, connecting the USB communication and starting the free motion GUI.

Linear Amplifier in DC Units

The low-noise linear amplifier of the CONEX-CC provides the optimum drive solution for low-power DC motors; delivering smoother motion, with less electrical noise and significantly less motor heating.

Specifications

Technical Specs

Stage Type
PR50CC
Travel Range
360°
Centered Load Capacity
10 N
Maximum Speed
20°/s
Maximum Torque
0.1 Nm
Minimum Incremental Motion
20 mdeg
Accuracy, Typical
±25 mdeg
Accuracy, Guaranteed
±50 mdeg
Uni-directional Repeatability, Typical
±5.0 mdeg
Uni-directional Repeatability, Guaranteed
±15 mdeg
Bi-directional Repeatability, Typical
±75 mdeg
Transversal Compliance
100 µrad/Nm
Wobble, Typical
±20 µrad
Wobble, Guaranteed
±50 µrad
Drive Type
DC Servo
Drive Mechanism
Ground worm gear
Worm Gear Ratio
1:63
Origin
Optical, centered
Origin Repeatability
±25 mdeg

Feedback
Motor mounted rotary encoder, 48 pts/rev
Encoder Resolution
0.01°
Compliance
RoHS 3, CE
Bearings
Ball bearings
Control Loop
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Display
Two-color LED
Programming
40+ intuitive, 2 letter ASCII commands.
Material
Aluminum
Inertia
0.015 kg.m²
Aperture Diameter
25.7 mm
Weight
0.4 kg
Power Requirements
24 VDC, 8 W
Cable Length
3 m
Computer Interfaces
USB
Controller Dimensions
93.2 x 53 x 23 mm
MTBF
10,000 h (25% load, 30% Duty cycle)
RoHS
Compliant

Stage Type
PR50CC
Travel Range
360°
Centered Load Capacity
10 N
Maximum Speed
20°/s
Maximum Torque
0.1 Nm
Minimum Incremental Motion
20 mdeg
Accuracy, Typical
±25 mdeg
Accuracy, Guaranteed
±50 mdeg
Uni-directional Repeatability, Typical
±5.0 mdeg
Uni-directional Repeatability, Guaranteed
±15 mdeg
Bi-directional Repeatability, Typical
±75 mdeg
Transversal Compliance
100 µrad/Nm
Wobble, Typical
±20 µrad
Wobble, Guaranteed
±50 µrad
Drive Type
DC Servo
Drive Mechanism
Ground worm gear
Worm Gear Ratio
1:63
Origin
Optical, centered
Origin Repeatability
±25 mdeg

Feedback
Motor mounted rotary encoder, 48 pts/rev
Encoder Resolution
0.01°
Compliance
RoHS 3, CE
Bearings
Ball bearings
Control Loop
Floating point digital PID loop with velocity and friction feedforward, 2 kHz servo rate
Display
Two-color LED
Programming
40+ intuitive, 2 letter ASCII commands.
Material
Aluminum
Inertia
0.015 kg.m²
Aperture Diameter
25.7 mm
Weight
0.4 kg
Power Requirements
24 VDC, 8 W
Cable Length
3 m
Computer Interfaces
USB
Controller Dimensions
93.2 x 53 x 23 mm
MTBF
10,000 h (25% load, 30% Duty cycle)
RoHS
Compliant

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

CONEX-PR50CC(487.5 kB, PDF)

Related Products

Similar

Description	Compatibility	Avail.	Price
CONEX-BGS50CCMotorized Goniometer, BGS50CC Integrated with CONEX-CC controller	UNIVERSAL	In Stock	$7,197
PR50CCMotorized Rotation Stage, Compact, 360°, 20°/s, DC Servo Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$2,272
CONEX-SR50CCMotorized Rotation Stage, SR50CC Integrated with CONEX-CC Controller	UNIVERSAL	4 Weeks	$4,277

Accessories

Description	Compatibility	Avail.	Price
CONEX-BPBase Plate, Mounts Multiple CONEX™ Controllers	UNIVERSAL	In Stock	$106
CONEX-PS¹Power Supply, 24 VDC, CONEX™ Motion Controllers	UNIVERSAL	In Stock	$137
CONEX-PS-CB²Power Chain Cable, 100 mm Length, CONEX™	UNIVERSAL	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$66

Notes:

Power Supply sold separately.
A CONEX-PS-CB is included in each CONEX-CC product. Purchase more as needed.
