45 Degree Mirror Holder, 25.4 mm Diameter

Model: UPA-45D1

$56

Show

Compare

Add to List

Product Series Overview

45-Degree Mirror Mounts

The UPA-45D1 45 Degree Mirror Holder allows 1 inch (25.4 mm) diameter mirrors to be mounted in U100-A aperture mounts for beamsteering applications. They have a clear aperture to allow a transmissive beam to pass through the holder.

Specifications

Technical Specs

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Optic Diameter

25.4 mm
Material

Anodized Aluminum

Special Features

Mounting adapter

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

UPA-45D1-S (91 kB, PDF)

Other

UPA-45D1 RoHS Certificate (279.5 kB, PDF)
UPA-45D1_RoHS2021.pdf (686.1 kB, PDF)

Related Products

Customers Who Bought This Item Also Bought

Description	Compatibility	Avail.	Price
PS-0.25 Pedestal Spacer, 0.25 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	Show	$10.10
PS-0.063 Pedestal Spacer, 0.0625 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	Show	$8.80
PS-0.125 Pedestal Spacer, 0.125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	Show	$10.10
PS-0.031 Pedestal Spacer, 0.03125 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR	UNIVERSAL	Show	$8.80
9920 45 Degree Mirror Holder, 25.4 mm Diameter	UNIVERSAL	Show	$49

Similar

Description	Compatibility	Avail.	Price

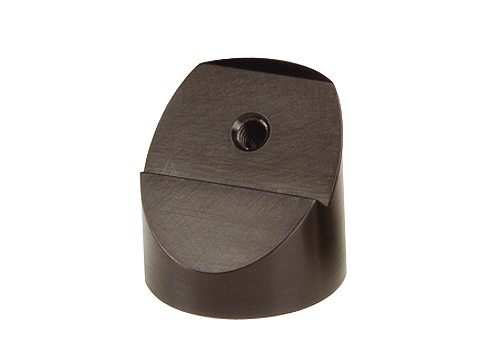

M-PS-45-ULT Pedestal Adaptor, 45 Degree, Threaded, ULTIMA^® Mounts, 8-32	METRIC	Show	$29
PS-45-SUP Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema^® Mount, 8-32	IMPERIAL	Show	$41
PS-45-ULT Pedestal Adaptor, 45 Degree, Threaded, ULTIMA^® Mounts, 8-32	IMPERIAL	Show	$29

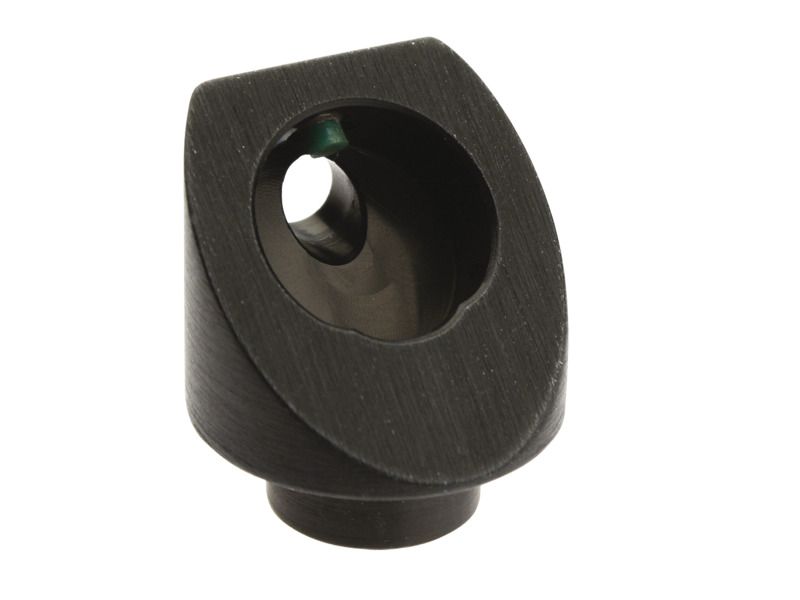

UPA-45D.5 45 Degree Mirror Holder, 12.7 mm Diameter	UNIVERSAL	Show	$42
