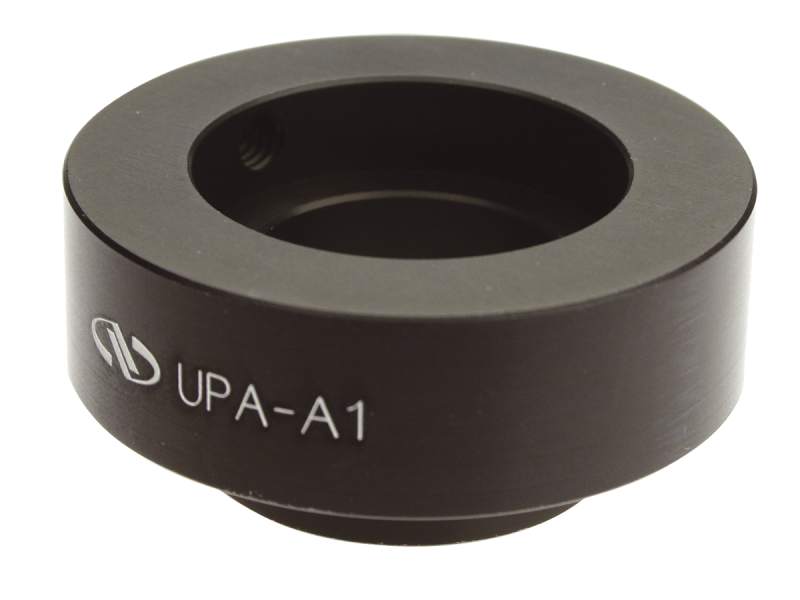

Spacer Adapter for UPA-45D1 and UPA-CH1
Spacer Adapter for UPA-45D1 and UPA-CH1
Model: UPA-A1
In Stock
Product Series Overview
Specialty Mirror Mount AdaptersThis Spacer Adaptor for UPA-45D1 and UPA-CH1 places the optic center 1 in. (25.4 mm) from the mounting post to allow simpler alignment with rows of holes on an optical table.
Resources & Downloads
2D Product Drawings
UPA-A1-S(71 kB, PDF)
Other
UPA-A1_RoHS2021.pdf(677.1 kB, PDF)
