Specialty Mirror Mount Adapters

Newport's specialty adapters allow users to use specialty components together with Newport's mirror mounts and components.

Parabolic mirror adapter for off-axis parabolic mirrors
Spacer adapter for easy alignment
Thin optic holders

See All Features

Showing 3 of 3 total products

Compatibility:

Description	Compatibility	Avail.	Price
UPA-A1Spacer Adapter for UPA-45D1 and UPA-CH1	UNIVERSAL	In Stock	$50
UPA2-OAPMounting Adapter, Off-Axis Parabolic Mirror, for 2 in. Mounts	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$56
UPATOThin Optics Adapter, 1.0 in. (25.4 mm) Diameter	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$50

Features

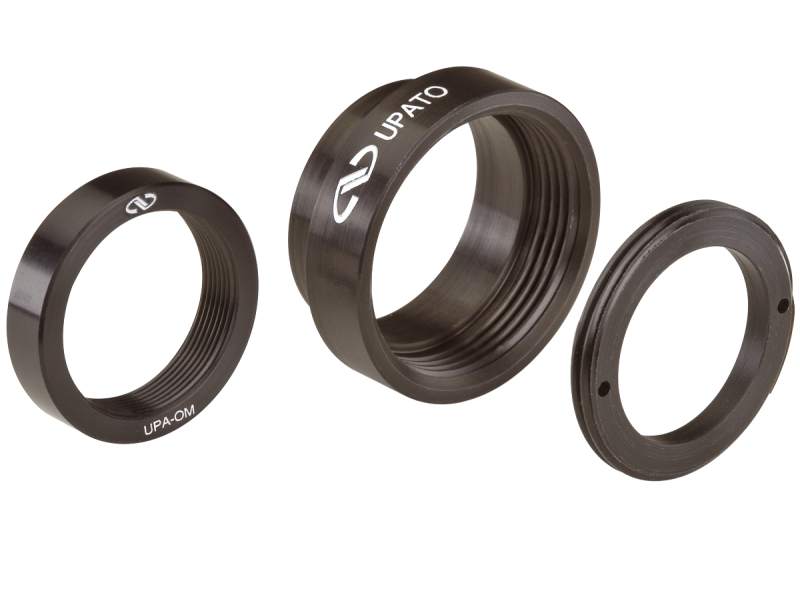

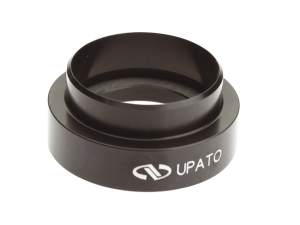

Thin Optic Holder

The Thin Optic Holder inserts into 1 inch mounts and provides a secure method of mounting thin 1.0 in. (25.4 mm) diameter optics.

Spacer Adapter for Easy Alignment

UPA-A1 Spacer Adaptor for UPA-45D1 and UPA-CH1 places the optic center 1 in. (25.4 mm) away from the mounting post to allow simpler alignment with rows of holes on an optical table.

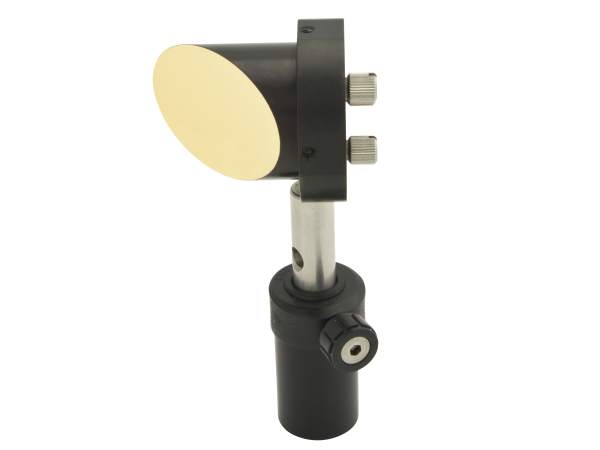

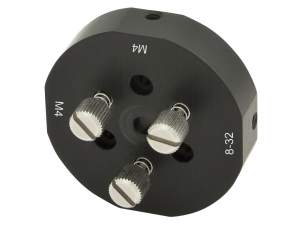

Parabolic Mirror Adapter

UPA2-OAP is a versatile adaptor used to provide a mounting interface for Replicated Off-Axis Parabolic Mirrors. It allows mounting in three ways: vertical post mounting, horizontal post mounting, and can be mounted into any positioner that can hold a 2 in. diameter optic, such as mirror mounts, lens mounts, and rotation mounts.
