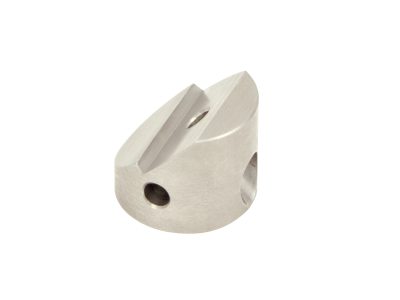

Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema® Mount, 8-32
Pedestal Adaptor, 45-degree, Counterbored, Threaded Suprema® Mount, 8-32
Model: PS-45-SUP
Product Series Overview

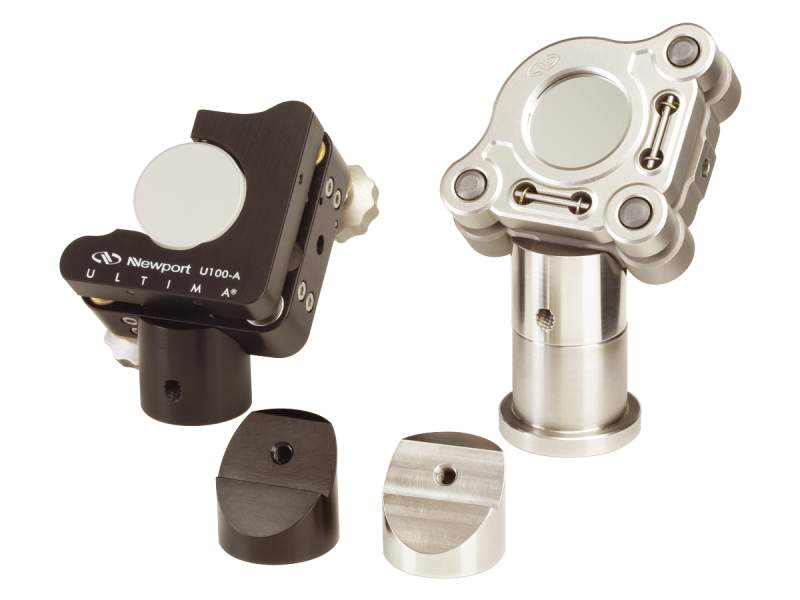

45-Degree Mirror Mount AdaptersThe PS-45-SUP Pedestal Adaptor allows Suprema® Series mounts which have a threaded mounting hole, like the SN100-F2K, to be pedestal-mounted at a fixed 45 degree pitch angle. This adaptor therefore has a 45-degree clearance hole which has been counterbored for 8-32 cap-head screws from the back side. The PS-45-SUP is designed so that it locates the Suprema mount's mirror both on the post center line and 2.0 in. above the base. The base of the adaptor has an 8-32 thread for mounting to English PS-series posts.
