Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Pedestal Adaptor, 45 Degree, Threaded, ULTIMA® Mounts, 8-32
Model: M-PS-45-ULT
Product Series Overview

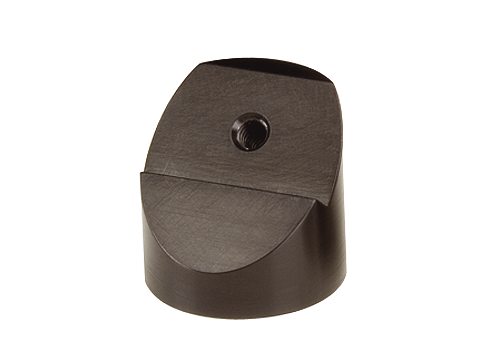

45-Degree Mirror Mount AdaptersThe M-PS-45-ULT Pedestal Adaptor allows ULTIMA® Series mirror mounts to be pedestal-mounted at a fixed +45 degree pitch angle. This adaptor has a 45-degree mounting hole which has been threaded for M4 cap-head screws. When used with a U100 mount, the center of the mirror will be aligned with the post center line and 50.8 mm above the base. The base of the adaptor has an M4 thread for mounting to Metric PS-series posts.
Resources & Downloads
2D Product Drawings
ASSY 45 DEG ULTIMA CATALOGUE(206.5 kB, PDF)
Other
M-PS-45-ULT RoHS Certificate(279 kB, PDF) M-PS-45-ULT_RoHS2021.pdf(682.1 kB, PDF)
