Mirror Mount Adaptor, 1.5 in. Diameter Posts and Pillars, 8-32 and 1/4-20
Mirror Mount Adaptor, 1.5 in. Diameter Posts and Pillars, 8-32 and 1/4-20
Model: SR-ADP
Product Series Overview

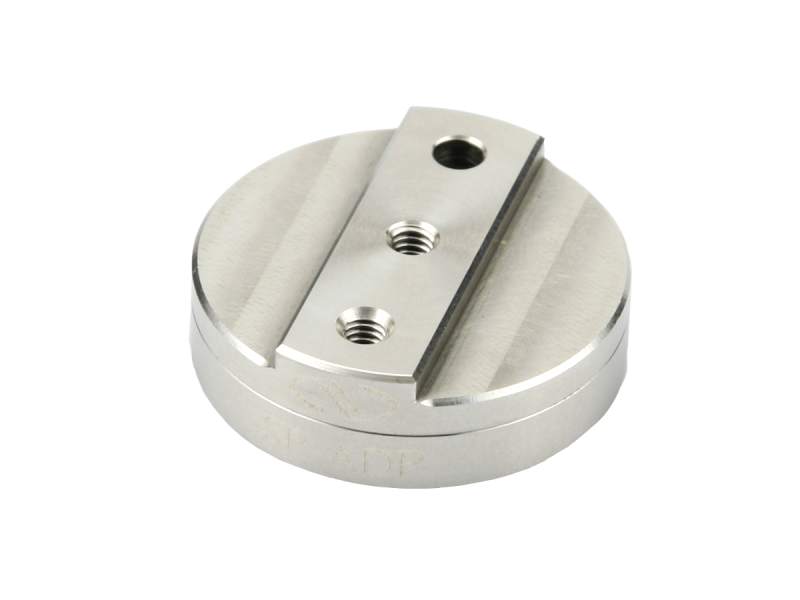

1.5 in. Post Mirror Mount AdaptersThe SR-ADP Mirror Mounting Adaptor allows rod-mounting of components, like mirror mounts, at non-standard heights. It is required for mount any of the SN100 or SS100 Suprema® mirror mounts. With both a counterbored thru hole and threaded mounting holes this adaptor mounts threaded or thru-hole mounts. The scribed line around the diameter of the adaptoris to set height when being used with the Q-XE-RA-1 to center optical axis height of a mirror mount being used within the Q-OC-1 Cube.
Resources & Downloads
2D Product Drawings
SR-ADP-302(112.5 kB, PDF)
Other
SR-ADP RoHS Certificate(277.1 kB, PDF) SR-ADP_RoHS2021.pdf(677.5 kB, PDF)
Related Products
Accessories
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | SK-10Black Oxide Screw Kit, Socket Head Cap, Assortment, Qty 180 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-ASocket Head Cap Screw Kit, Stainless Steel, 8-32 & 1/4-20, Qty 805 | In Stock | ||||
 | SK-25.75BBlack Oxide Screw Kit, Socket Head Cap, 1/4-20 x 0.75 inch, Qty 100 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-25.75ABlack Oxide Screw Kit, Set Screws, 1/4-20 x 0.75 inch, Qty 100 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | SK-25ABlack Oxide Screw Kit, 1/4-20, Assortment, Qty 261 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Similar
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | UPA1-.75Mirror Mount Adapter, 25.4 mm to 19.05 mm Diameter, For ULTIMA® | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

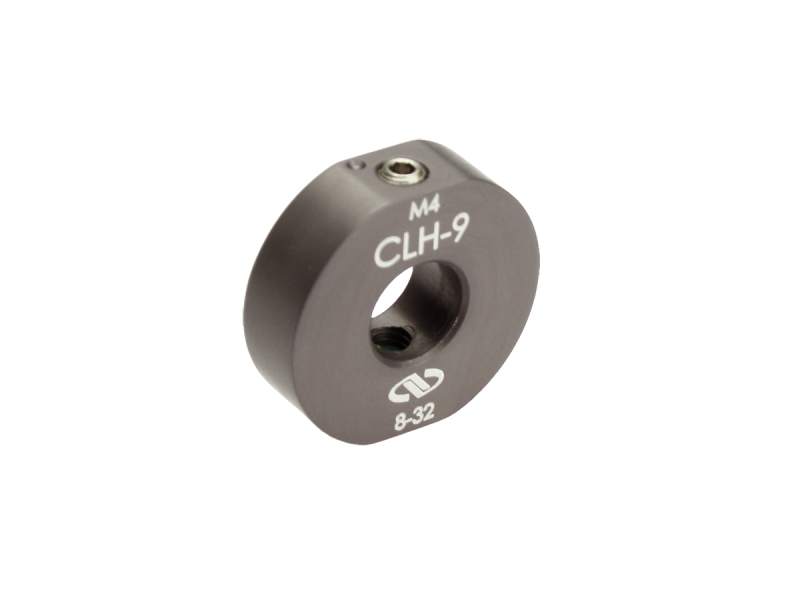

 | CLH-9Collimator and Laser Diode Adapter, 9 mm, 1 inch Mirror Mounts | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
