Thread Adaptor, Rod Cube, 1.5 in. Diameter Posts and Pillars, 1/4-20
Thread Adaptor, Rod Cube, 1.5 in. Diameter Posts and Pillars, 1/4-20
Model: SR-QA
Product Series Overview

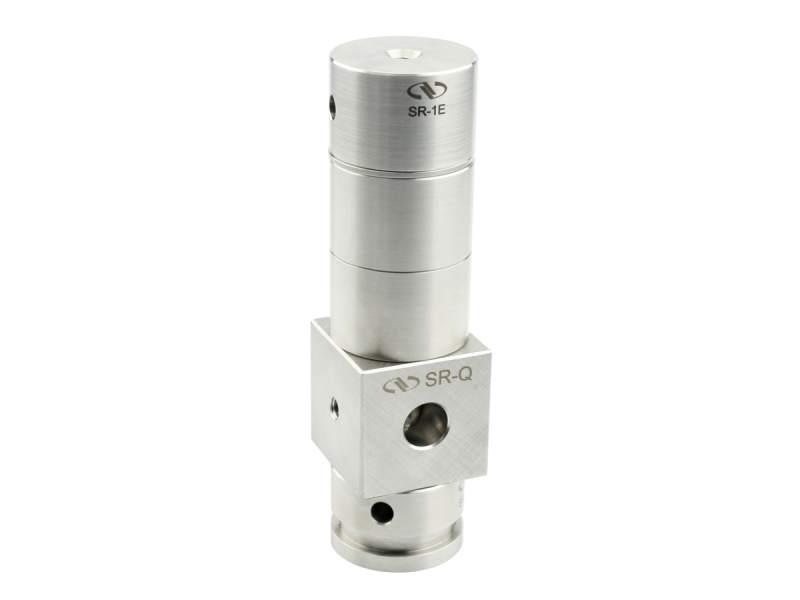

1.5 in. Post Cube AdaptersThe SR-QA thread adaptor fits into either of the two counterbores in the SR-Q Rod Cube and provides an additional set of threaded holes on the cube for further stacking of posts or other cubes. It also allows the cube to be rotated to the same orientation as any of the cubes above or below. With this feature, unlike other cubes, the Rod Cube can be infinitely stacked while maintaining a common alignment.
Resources & Downloads
2D Product Drawings
SR-QA-306(91.5 kB, PDF)
Other
SR-QA RoHS Certificate(277 kB, PDF) SR-QA_RoHS2021.pdf(679.8 kB, PDF)
