Optical Pedestal Cube, 8-32 Mounting Holes
Optical Pedestal Cube, 8-32 Mounting Holes
Model: PS-Q
Product Series Overview

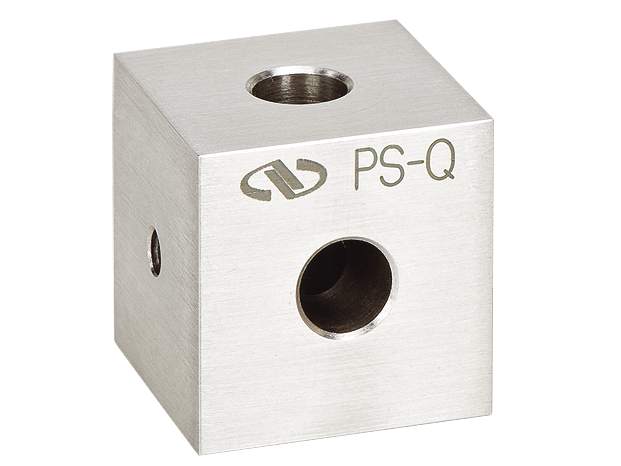

1.0 in. Optical Pedestal CubesThe PS-Q Pedestal Cube is designed to allow mounting of PS Series Pedestal and Extension Posts at a 90° angle enabling the construction of ultra-stable multi-dimensional structures. What makes the Pedestal Cube system unique is its ability to allow alignable stacking of cubes on to posts. This is accomplished by using the PS-QA thread adaptor which fits into either of the two counterbores on the cube. The thread adaptor allows the cube to be rotated to the same orientation as any of the cubes below it while also providing a threaded hole on top of the cube for further stacking of posts or other cubes. With this feature, unlike other cubes, the Pedestal Cube can be infinitely stacked while maintaining a common alignment.
Resources & Downloads
Other
PS-Q RoHS Certificate(278 kB, PDF) PS-Q_RoHS2021.pdf(680.2 kB, PDF)
2D Product Drawings
PS-Q Pedestal Cube.pdf(205.7 kB, PDF)
Related Products
Frequently Purchased Together
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | PS-0.5EOptical Post, 0.5 in. Height, 1.0 in. Diameter, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||

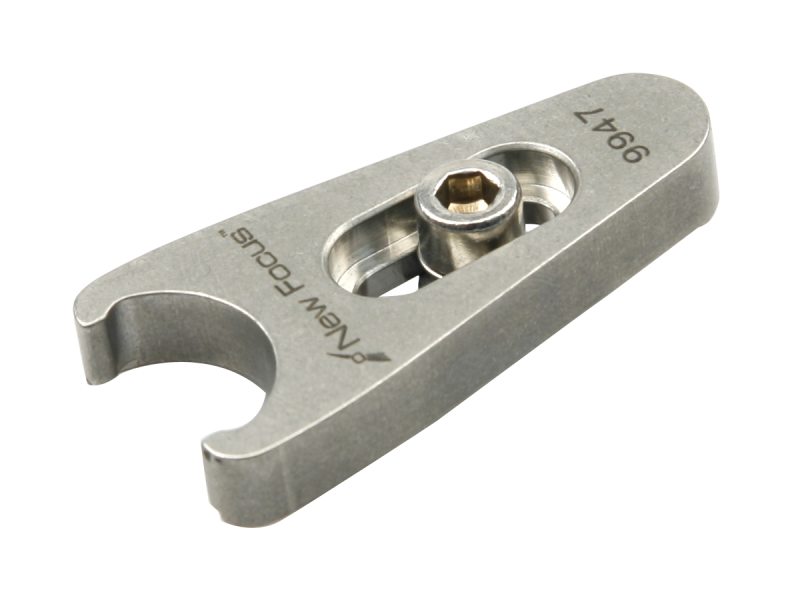

 | 9947Clamping Fork, Small Pedestal, Captive 1/4-20 Screw | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PS-F-1.0Clamping Fork, 1.0 in. Diameter Pedestal, 1.0 in. Slot Length, 1/4-20 (M6) Slot | 3 Weeks | ||||

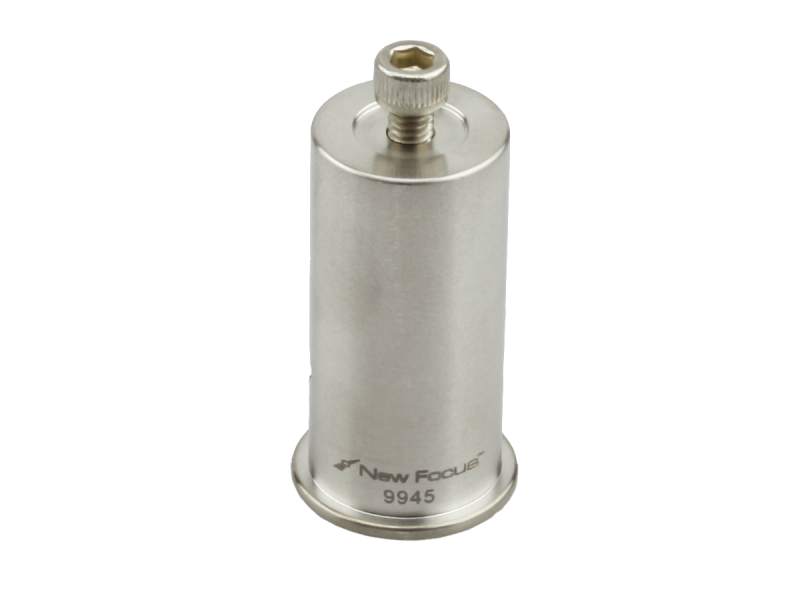

 | 9945Optical Pedestal, 1.5 in. Height, 0.7 in. Diameter, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | PS-1EOptical Post, 1.0 in. Height, 1.0 in. Diameter, 8-32 Thread | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
 | 9941-S13Optical Pedestal Spacer, 0.125 in. Thick, 0.7 in. Diameter, 8-32 CLR | In Stock | ||||
 | PS-0.25Pedestal Spacer, 0.25 in. Thick, 1 in. Diameter Posts, 8-32 (M4) CLR | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More |
Compatible
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|

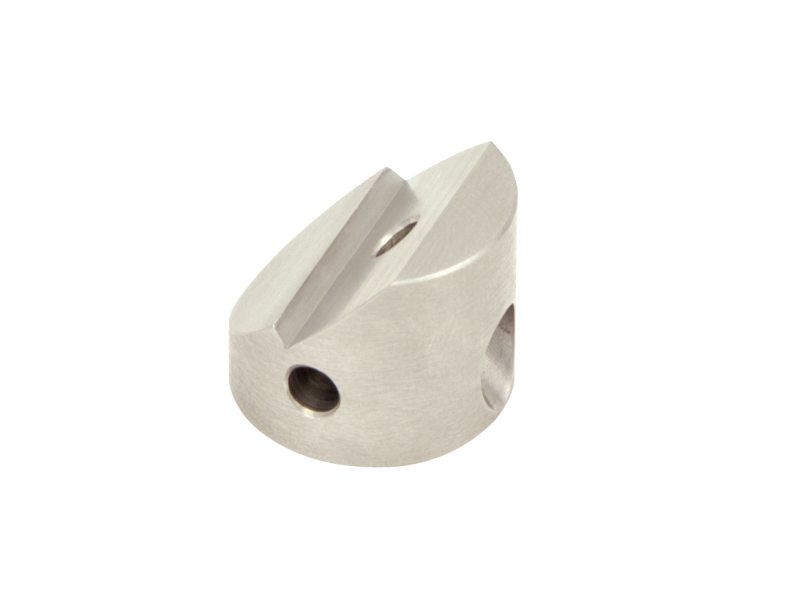

 | PS-45-SUPPedestal Adaptor, 45-degree, Counterbored, Threaded Suprema® Mount, 8-32 | In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More | ||||
