Pedestal Mounting Base, 1.5 in. Diameter Posts and Pillars, 1/4-20
Pedestal Mounting Base, 1.5 in. Diameter Posts and Pillars, 1/4-20
Model: SR-B
Product Series Overview

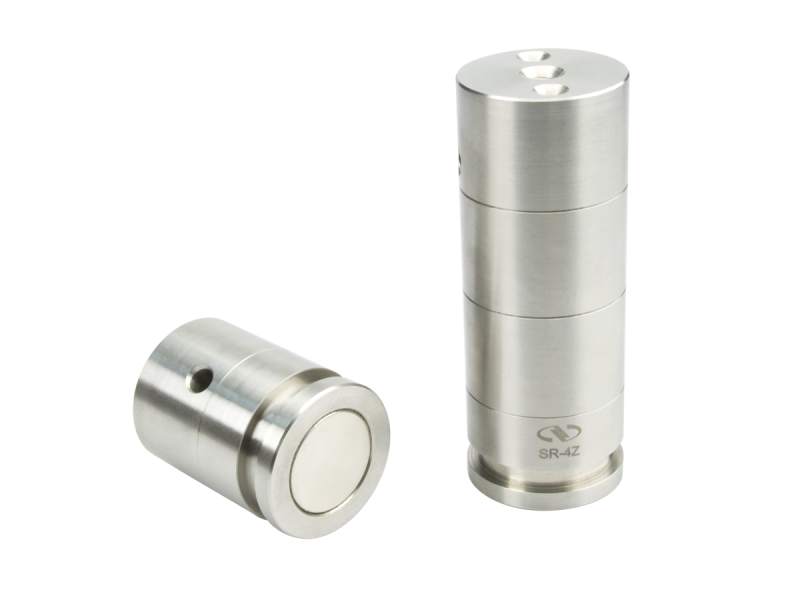

1.5 in. Optical Rod BasesThe SR-B Non-magnetic Mounting Base is used when pedestal mounting is needed but without the magnetic base, the SR-B pedestal base is provided which can be combined with the SR-E extension posts and SP-S spacers for various height applications. The SR-F, all-stainless steel clamping fork, is used to clamp the SR-B on to an optical table.
Resources & Downloads
2D Product Drawings
SR-B-303(69.3 kB, PDF)
Other
SR-B RoHS Certificate(277.2 kB, PDF) SR-B_RoHS2021.pdf(677.8 kB, PDF)
