Optical Pedestal, Clean-Passivated, 1 in. Height, 1 in. Diameter, 8-32, 1/4-20

Pedestal Base Adapters

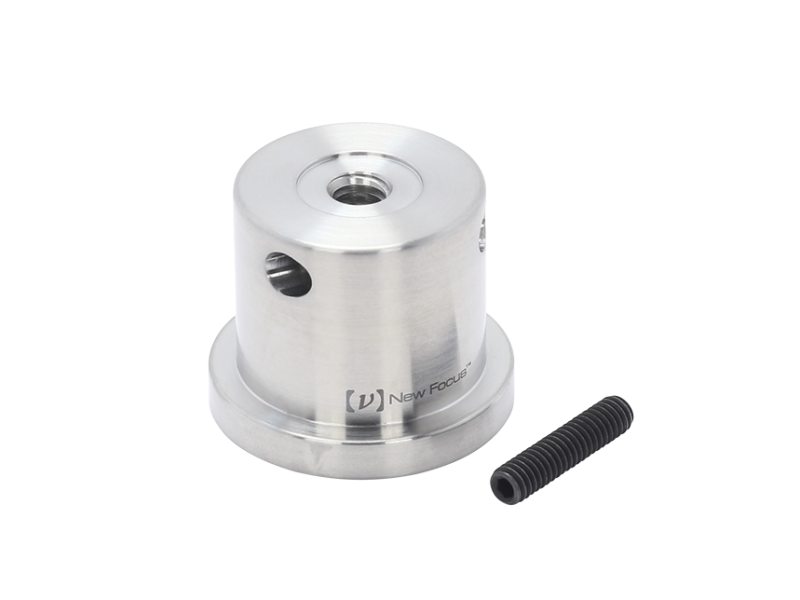

The 9959NF Fixed Stainless Steel Pedestal Riser has a 1/4-20 tapped hole on top and an 8-32 tapped hole on the bottom. It is great for mounting post holders for more versatility or a stable solution for raising mounting plates off a table.

Specifications

Technical Specs

Type
Pedestal Base Adapter
Height
25.4 mm
Thread Type
8-32 and 1/4-20
Material
Stainless Steel

Diameter
25.4 mm
Pack Quantity
1

Type
Pedestal Base Adapter
Height
25.4 mm
Thread Type
8-32 and 1/4-20
Material
Stainless Steel

Diameter
25.4 mm
Pack Quantity
1

Resources & Downloads

2D Product Drawings

9959b-Drawing(74.4 kB, PDF)

Related Products

Accessories

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		SP-1.5Optical Post, 1.5 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$6.40
		SP-1Optical Post, 1.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$5.30

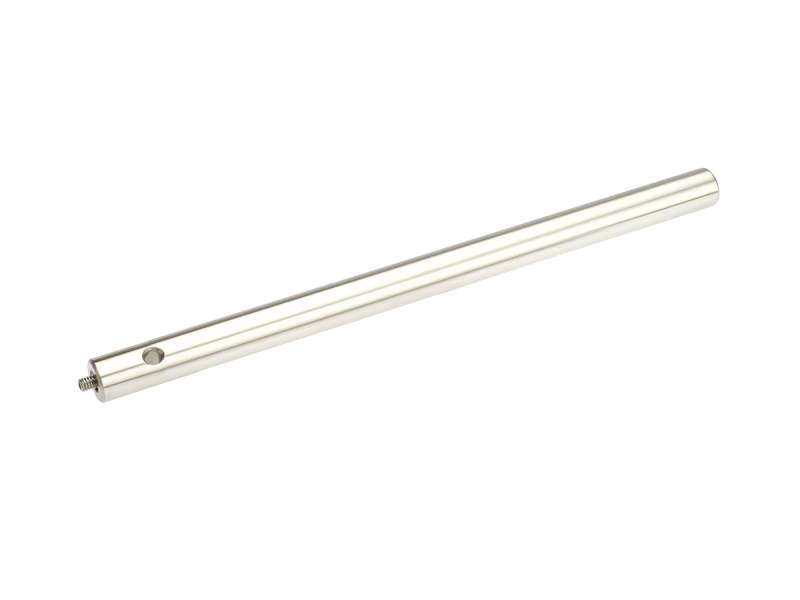

		SP-8Optical Post, 8 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL		FREE 2-day shipping on thousands of products on Newport.com Learn More	$10.40
