Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Direct Encoder, Folded
Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Direct Encoder, Folded
Model: RV120HAT-F
In Stock
Product Series Overview

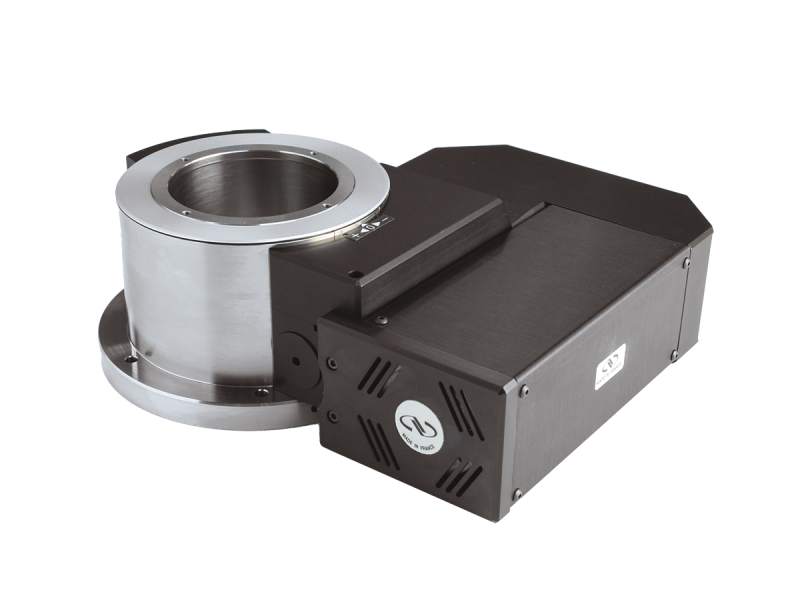

RV Folded DC Motor Rotation StagesThe RV120HAT-F Folded High Speed Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 120 mm diameter stage features a high speed DC drive enabling speeds up to 80°/s. This stage is equipped with a direct reading optical encoder attached to the moving platen for superior resolution and accuracy. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear.
Resources & Downloads
2D Product Drawings
RV120HAT-F Drawing(446 kB, PDF)
Related Products
Compatible Controllers and Drivers
Based on axis required, choose a specific XPS-D or XPS-RLD controller to pair with the stage. Along with the controller, a driver module is required.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | xps-d-universal-motion-controllerXPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | xps-rl-universal-high-performance-motion-controllerXPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver | |||||
 | XPS-DRV03PWM Drive Module, High Performance, DC Motors | In Stock |
