PWM Drive Module, High Performance, DC Motors

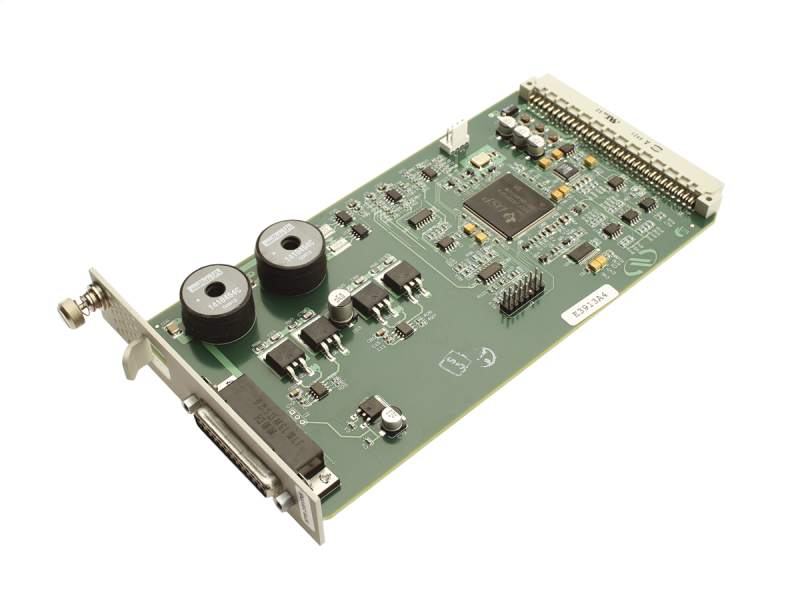

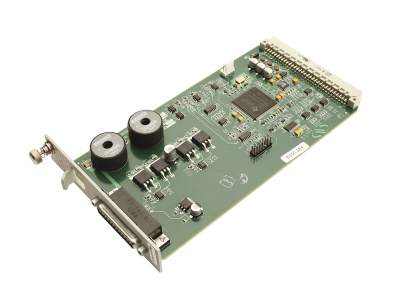

The XPS-DRV03 is a fully numerical, programmable PWM-Amplifier that has been optimized for the use with high-performance DC motors. The 100kHz high switching frequency and appropriate filter technologies minimize noise, enabling ultra-precision positioning in the nm-range. The XPS-DRV03 supplies a maximum current of 5 Amps and 43 Volts. It can drive DC motors in velocity mode, for motors with a tachometer, in voltage mode, for motors without a tachometer, and in current mode, for torque motors. All parameters are free programmable in physical units, for instance the bandwidth of the velocity loop. Furthermore, the XPS-DRV03 features separate limits for the rms current and peak current.

ESP Plug-and-Play Compatibility

When an ESP-compatible stage is connected to the XPS, the stage is quickly recognized and operating parameters are configured without the need for user inputs. This Plug and Play feature is not only transparent to the user, but it also ensures the safe operation of the stage.

Specifications

Technical Specs

Drive Type
DC
Maximum Current
5 A
Maximum Voltage
43 V
Maximum Power Consumption
240 W
Connector Type
DB25

ESP Compatibility
ESP Stage Detection
Number of Axis
1
Use
XPS

Drive Type
DC
Maximum Current
5 A
Maximum Voltage
43 V
Maximum Power Consumption
240 W
Connector Type
DB25

ESP Compatibility
ESP Stage Detection
Number of Axis
1
Use
XPS

Resources & Downloads

Literature

XPS Driver Cards Datasheet(2.5 MB, PDF)

Related Products

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price

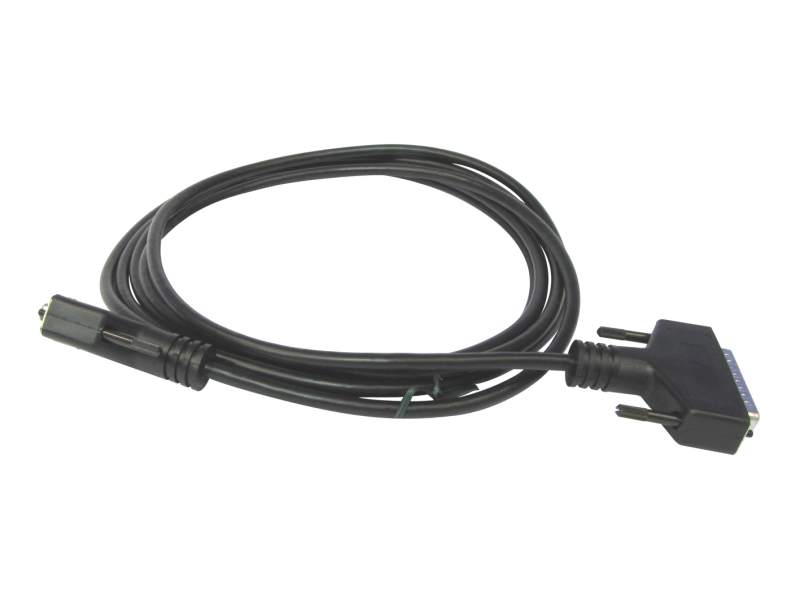

		MSCABLE-3Cable, DB-25 Male to DB-15 Female, 3 m Length	UNIVERSAL		In Stock	$664

Similar

Description	Compatibility	Avail.	Price
XPS-DRV02PWM Drive Module, Brushless Motors	UNIVERSAL	In Stock	$1,353
XPS-DRVP1Nano Positioning Drive Module, Piezo-Stack	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,204
XPS-DRV01PWM Drive Module, DC and Stepper Motors	UNIVERSAL	In Stock	$925

Compatible

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		MMCABLE-REGInline Regulator, 5 VDC, for MMCABLEs 5 m or longer	UNIVERSAL		In Stock	$252
		XPS-D8Universal Motion Controller, High Performance, 8-axis, Ethernet	UNIVERSAL		In Stock	$12,058

Frequently Purchased Together

Description	Compatibility	Avail.	Price
XPS-DRV01PWM Drive Module, DC and Stepper Motors	UNIVERSAL	In Stock	$925
XPS-DRV11Motion Controller Card, Universal, Stepper, DC, and Linear Motors	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$865
XPS-DRV02PWM Drive Module, Brushless Motors	UNIVERSAL	In Stock	$1,353
XPS-DRV01PWM Drive Module, DC and Stepper Motors	UNIVERSAL	In Stock	$925
XPS-GCODEG-code Software, XPS controller	UNIVERSAL	In Stock	$866
XPS-D8Universal Motion Controller, High Performance, 8-axis, Ethernet	UNIVERSAL	In Stock	$12,058

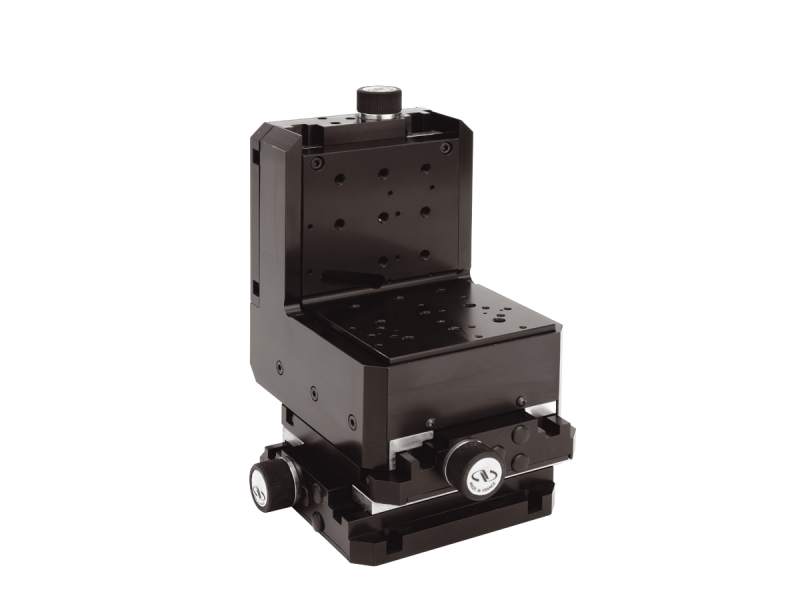

M-VP-25XL-XYZRMotorized XYZ Linear Stage, 25 mm, 10 nm MIM, DC Servo, Tach, Metric	METRIC	In Stock	$26,357
