Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Folded
Motorized Rotation Stage, 120 mm, High-Speed DC Drive, Folded
Model: RV120CC-F
7 Weeks
Product Series Overview

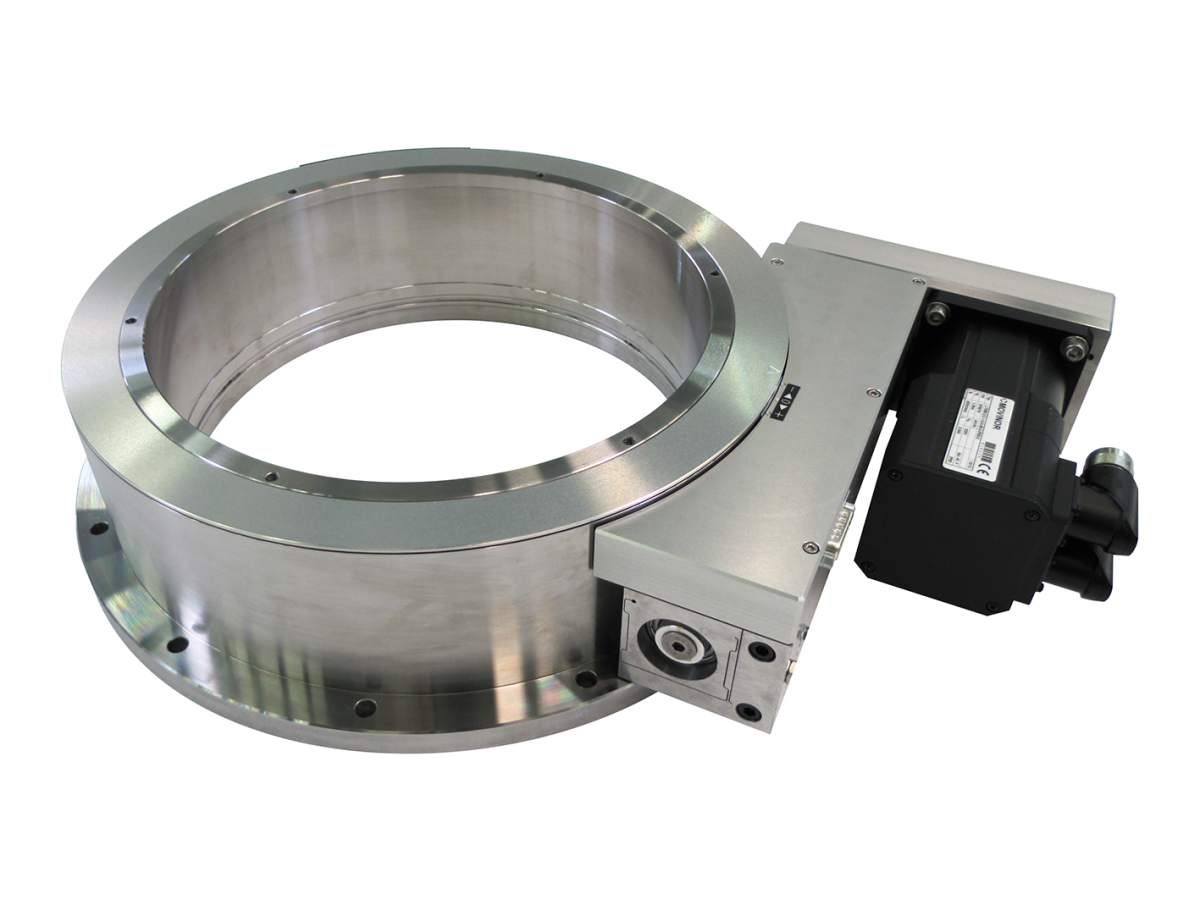

RV Folded DC Motor Rotation StagesThe RV120CC-F Folded High Speed Rotation Stage provides high-precision angular positioning accuracy combined with high load capacity. This 120 mm diameter stage features a high speed DC drive enabling speeds up to 80°/s. All RV stages are constructed of tool steel, with rotation accuracy ensured by ground bearing surfaces. A double row of preloaded bearings allows for high off-center loads in a reduced footprint. The single monolithic design offers improved stiffness without compromising dynamic performance. Precise rotation is ensured by a precision ground and hardened worm gear. A rotary encoder mounted on the worm gear shaft provides 0.001° position feedback resolution.
Resources & Downloads
Manuals
RV - User's Manual.pdf(2.5 MB, PDF)
Related Products
Compatible Controllers and Drivers
Based on axis required, choose a specific controller to pair with the stage. For XPS-D or XPS-RLD, a driver module is required.
| Compare | Description | Drawings, CAD & Specs | Avail. | Price | ||
|---|---|---|---|---|---|---|
 | xps-d-universal-motion-controller1XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver | |||||
 | xps-rl-universal-high-performance-motion-controller2XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver | |||||
 | esp301-3-axis-dc-and-stepper-motion-controller3ESP302 3-Axis DC and Stepper Motion Controller |
Notes:
- Requires XPS-DRV11 driver module
- Requires XPS-DRV11 driver module
- Plug and play compatible with ESP302 controller
