Beam Tube Connector, Aegis Qube Series, Light Tight, 1.5 in.
Beam Tube Connector, Aegis Qube Series, Light Tight, 1.5 in.
Model: Q-BT-CR
Product Series Overview

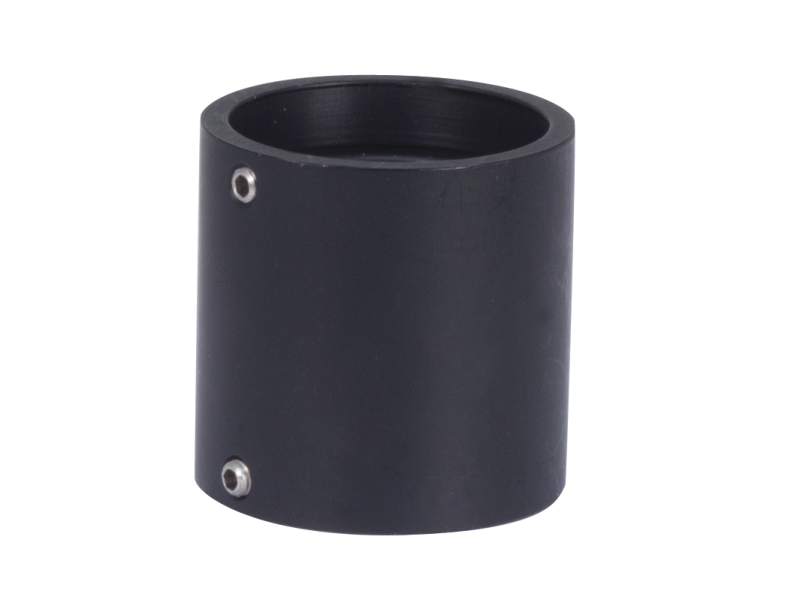

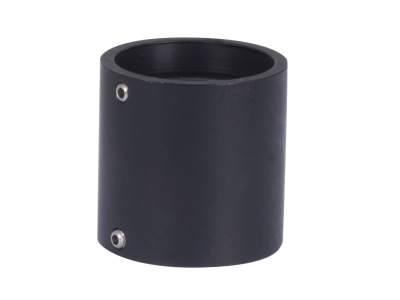

Beam Tubes, Aegis QubeThe Q-BT-CR is a light-tight connector for the Aegis Qube™ Series of Beam Tubes. A set of O-rings are integrated into the design of this this tube connector to ensure the connections from beam tube to beam tube are light tight. This Beam tube connector is also shorter (half the length), than the of the Q-BT-C. Set screws are used to secure the conector to the beam tube.
Resources & Downloads
2D Product Drawings
Q-BT-CR-323(108 kB, PDF)
Other
Q-BT-CR RoHS Certificate(279.9 kB, PDF)
