Post Mount, Beam Tube, Aegis Qube™ Series
Post Mount, Beam Tube, Aegis Qube™ Series

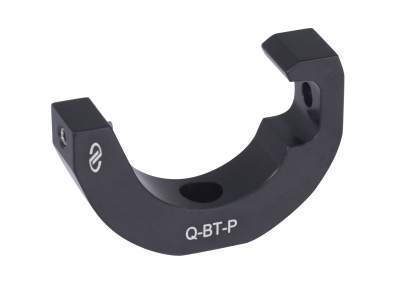

Model: Q-BT-P
Product Series Overview

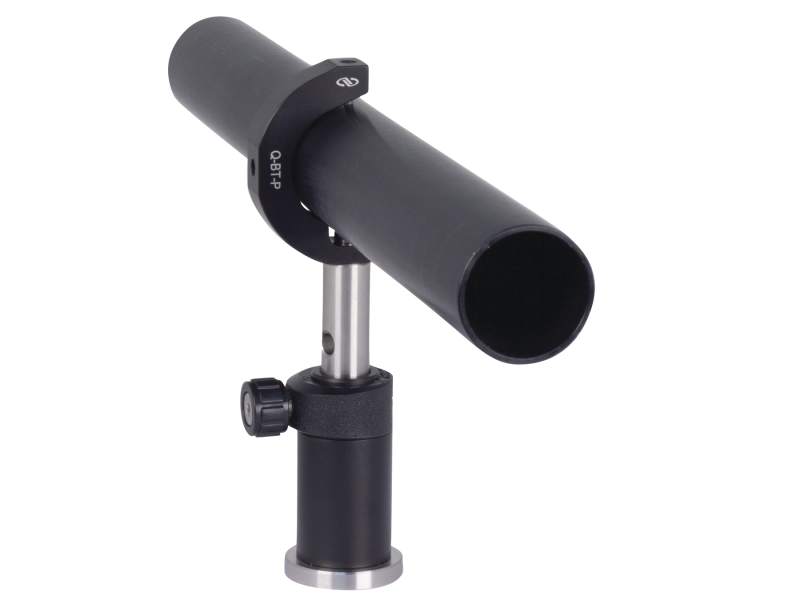

Beam Tubes, Aegis QubeBeam tubes can be post-mounted using the Q-BT-P Beam Tube Mount. Its innovative design includes an open side allowing beam tubes to be easily added or removed from a set up. This open-side feature also allows the BT-series beam tubes to be mounted in the closest possible proximity; actually touching. An additional counterbored clearance hole (for 8-32 or M4 caphead screws) allows the Q-BT-P to mounted with the open side facing up providing the advantage of having the beam tubes added or removed from above the setup.
Resources & Downloads
2D Product Drawings
Q-BT-P-1(113.5 kB, PDF)
Other
Q-BT-P RoHS Certificate(278.5 kB, PDF) Q-BT-P_RoHS2021.pdf(680.2 kB, PDF)
