Motorized Linear Actuator, 11 mm Travel, Micro Step Drive

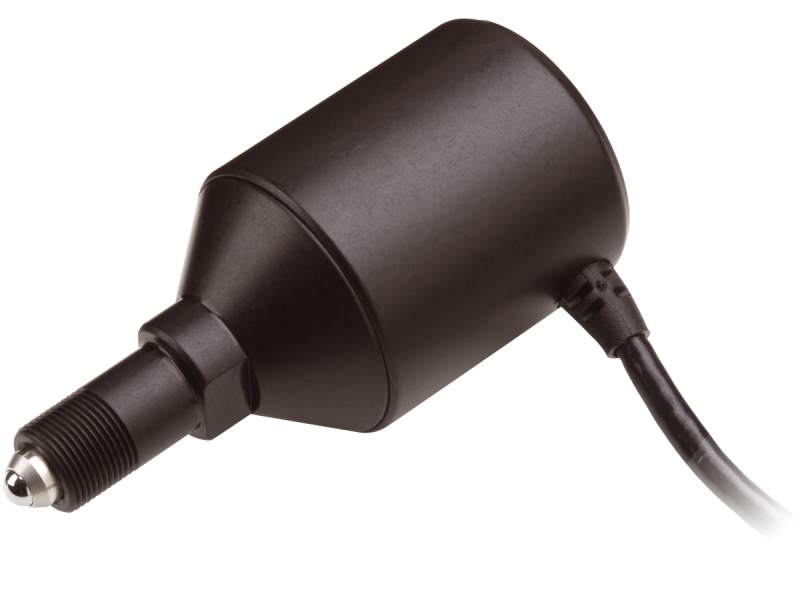

newstep miniature linear stepper motor actuator model nsa12

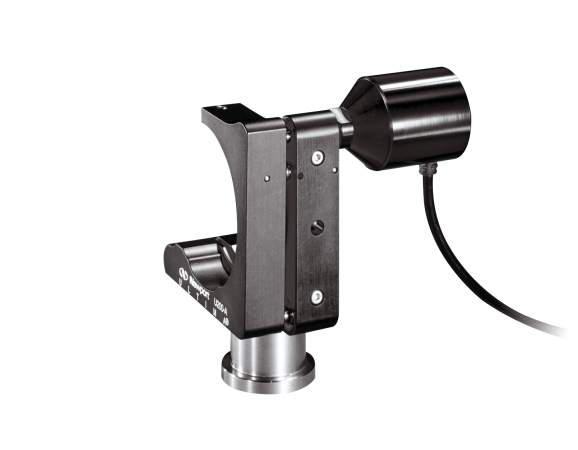

The NSA12 Miniature Motorized Linear Actuator with 11 mm travel is an economical solution for motorizing mirror mounts, rotation stages, linear stages and other manual motion devices. They are ideal for remote adjustment of sensitive, hard-to-reach optical components which can be influenced by the compressive and torsional forces imposed by traditional manual adjustment micrometers. Typical applications include optimizing the alignment of a laser cavity, zeroing in on coherence lengths or just adjusting the pointing of a beam over a long distance. Individual actuator only, controller not included.

Specifications

Technical Specs

Travel Range
11 mm
Maximum Speed
0.9 mm/s
Minimum Incremental Motion
0.20 µm
Axial Load Capacity (+Cx)
0 N
Inverse Axial Load Capacity (-Cx)
-28 N
Bi-directional Repeatability (Typical)
±5.0 µm
Uni-directional Repeatability (Typical)
2.2 µm
Drive Screw Pitch
0.3048 mm
Origin
Optical, at lower limit
Origin Repeatability
±2 µm

Limit Switches
Limit switch on the motor side
Cable Length
3 m
Connectors
9-pin Mini DIN
Power Consumption
5 W
Weight
0.14 kg
MTBF
10,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Travel Range
11 mm
Maximum Speed
0.9 mm/s
Minimum Incremental Motion
0.20 µm
Axial Load Capacity (+Cx)
0 N
Inverse Axial Load Capacity (-Cx)
-28 N
Bi-directional Repeatability (Typical)
±5.0 µm
Uni-directional Repeatability (Typical)
2.2 µm
Drive Screw Pitch
0.3048 mm
Origin
Optical, at lower limit
Origin Repeatability
±2 µm

Limit Switches
Limit switch on the motor side
Cable Length
3 m
Connectors
9-pin Mini DIN
Power Consumption
5 W
Weight
0.14 kg
MTBF
10,000 h (25% load, 10% duty cycle)
RoHS
Compliant

Resources & Downloads

Application Notes

DS-032402 NSA12 Application Note(1.1 MB, PDF)
Motorized Alignment System Brings a New Light into Optical Fiber(787.2 kB, PDF)
Automated Optical Fiber Alignment System(2 MB, PDF)

2D Product Drawings

NSA Drawing(145.1 kB, PDF)
