Motorized Actuator, Miniature, 12 mm Travel, Stepper, 25-pin D-Sub

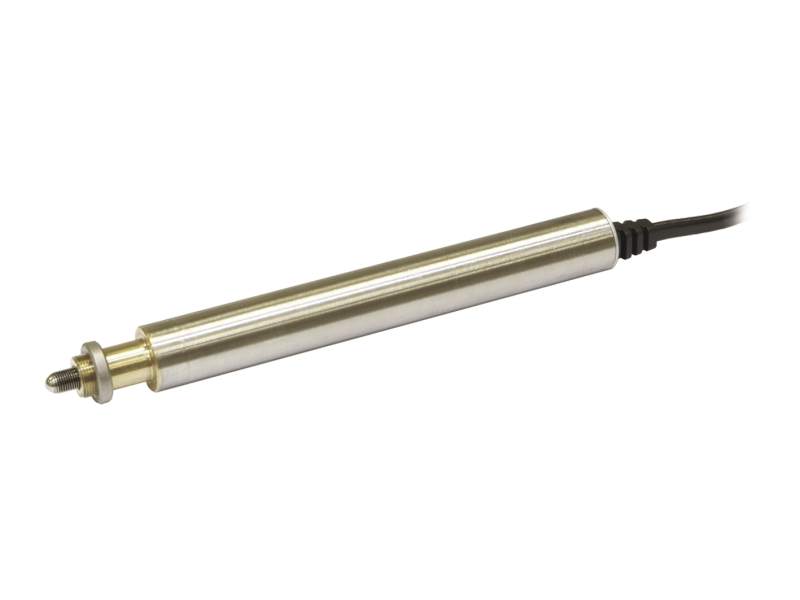

The TRA12PPD Miniature Stepper Motor Actuator provides 12 mm travel in a slim, 15 mm diameter housing and is the recommended choice for motorizing 561 series linear stages, and 481 and RS65 rotation stages. TRA actuators incorporate an excellent space saving design that allows them to be used with a wide variety of linear stages, mirror mounts, and OEM applications. 25-pin D-Sub connector.

Slim Design

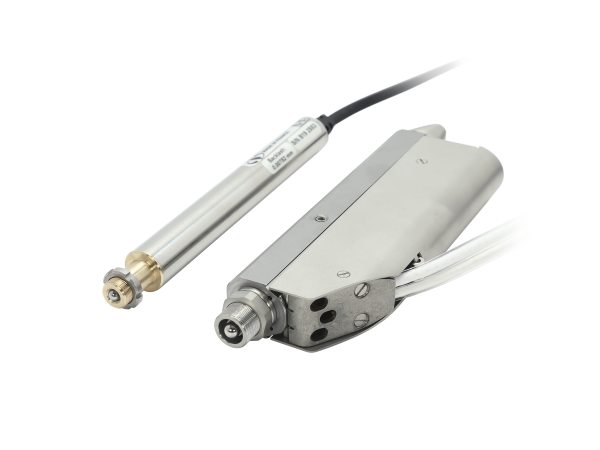

TRA6 and TRA12 models provide 6 mm or 12 mm of travel in a slim, 15 mm diameter housing. The TRA25 provides 25 mm travel in a slightly larger 18 mm housing. The slim design minimizes the space used when upgrading a manual stage or optical mount to a motorized solution.

Replaces Micrometer Drives on Manual Stages

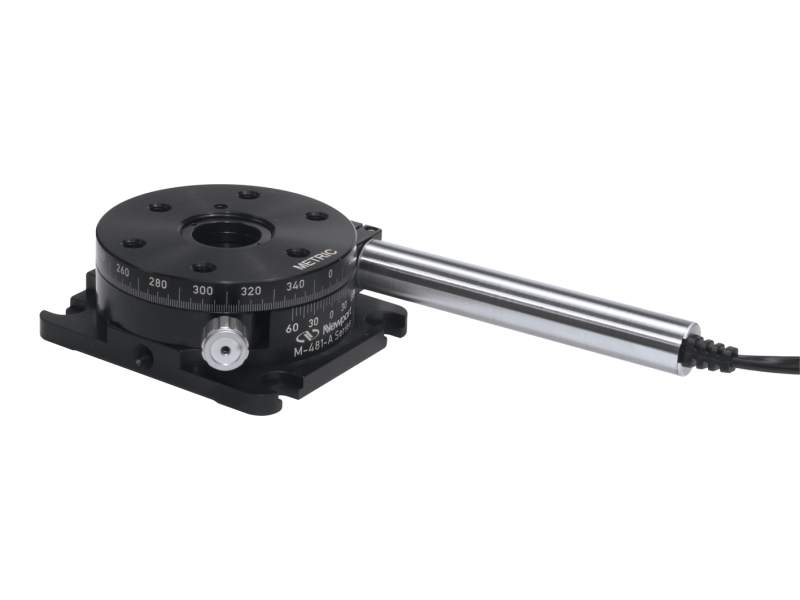

TRA actuators offer a similar form-factor as micrometer drives, allowing them to be used to upgrade manual stages with ease. The TRA6 models provide 6 mm travel and are the recommended choice for motorizing 561 Series linear stages, and 481 and RS65 rotation stages. The TRA12 models provide 12 mm travel and are compatible with Suprema and Ultima mirror mounts, ULTRAlign, and 460A Series linear stages. The TRA25 provides 25 mm travel in a slightly larger package and is the recommended choice for motorizing longer travel devices. Additionally, TRA actuators are mechanically compatible with other Newport mechanical products – for more details refer to the TRA and TRB Series Compatibility guide.

Hard Coated Actuator Tip

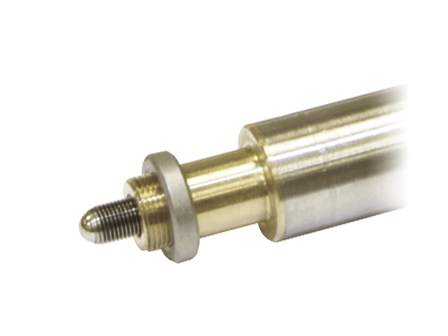

TRA actuators also feature a hard-coated steel ball tip that minimizes contact surface wear compared to other designs that use regular steel ball tips.

Integrated Optical Limit Switches

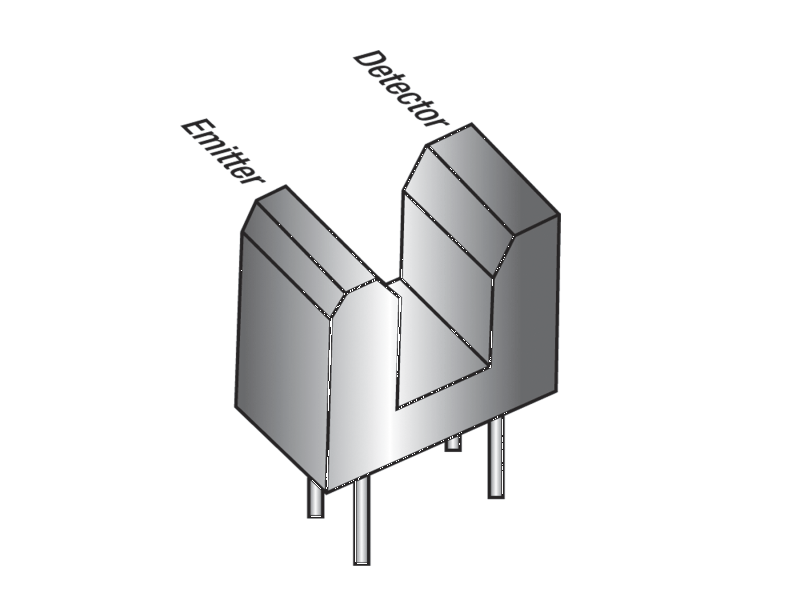

All TRA actuators include integrated optical limit switches. These highly reliable switches not only protect investments from over travel damage, they also provide a method for repeatable referencing/homing, for instance after shut-downs.

Specifications

Technical Specs

Travel Range
12 mm
Maximum Speed
0.4 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
60 N
Accuracy, Typical
±2.2 µm
Accuracy, Guaranteed
±4.0 µm
Bi-directional Repeatability, Typical
±0.15 µm
Bi-directional Repeatability, Guaranteed
±1.25 µm
Uni-directional Repeatability, Typical
±0.10 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Drive Screw Pitch
0.5 mm
Reduction Gear
1:256

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Limit Switches
Optical switches, both ends
Cable Length
3 m
Connector Type
DB25 - Male
Power Consumption
5 W
Weight
0.25 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Travel Range
12 mm
Maximum Speed
0.4 mm/s
Minimum Incremental Motion
0.10 µm
Push Force
60 N
Accuracy, Typical
±2.2 µm
Accuracy, Guaranteed
±4.0 µm
Bi-directional Repeatability, Typical
±0.15 µm
Bi-directional Repeatability, Guaranteed
±1.25 µm
Uni-directional Repeatability, Typical
±0.10 µm
Uni-directional Repeatability, Guaranteed
±0.50 µm
Drive Screw Pitch
0.5 mm
Reduction Gear
1:256

Origin
Optical, at lower limit
Origin Repeatability
±2 µm
Limit Switches
Optical switches, both ends
Cable Length
3 m
Connector Type
DB25 - Male
Power Consumption
5 W
Weight
0.25 kg
MTBF
10000 h (25N load, 10% duty cycle)
Maximum Power Consumption
10 W
Compliance
RoHS 3, CE

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

TRA12CC & PPD(375.8 kB, PDF)

Related Products

Compatible Controllers

Description	Compatibility	Avail.	Price
XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver¹XPS-D Universal High-Performance 1-8 Axis Motion Controller and Driver	UNIVERSAL
XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver²XPS-RLD Universal High-Performance 1-4 Axis Motion Controller and Driver	UNIVERSAL
ESP302 3-Axis DC and Stepper Motion ControllerESP302 3-Axis DC and Stepper Motion Controller	UNIVERSAL
SMC100PPMotion Controller, Single-axis Stepper Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452

Notes:

Requires XPS-DRV11 driver module
Requires XPS-DRV11 driver module

Accessories

Description	Compatibility	Avail.	Price

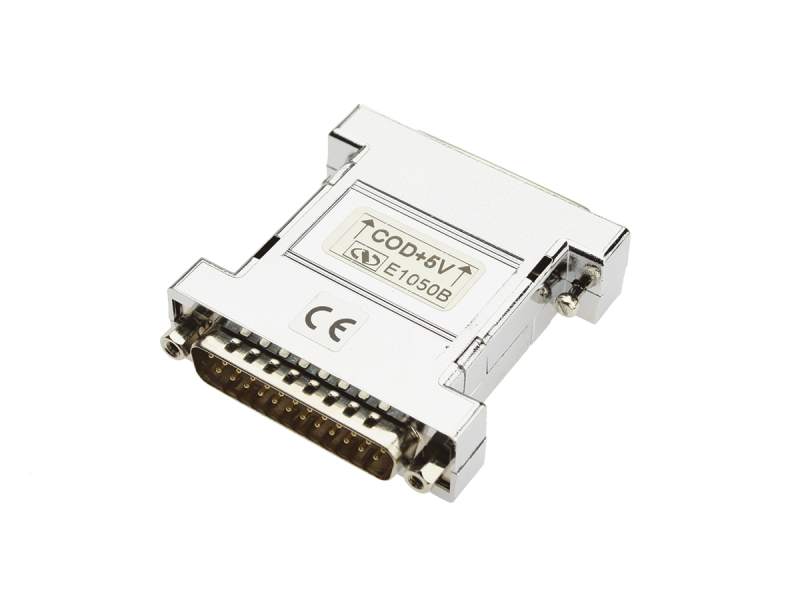

MMCABLE-REGInline Regulator, 5 VDC, for MMCABLEs 5 m or longer	UNIVERSAL	In Stock	$252
M-FK-BLXL-Allen Wrench Set, Sizes: 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10 mm, Metric	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$37

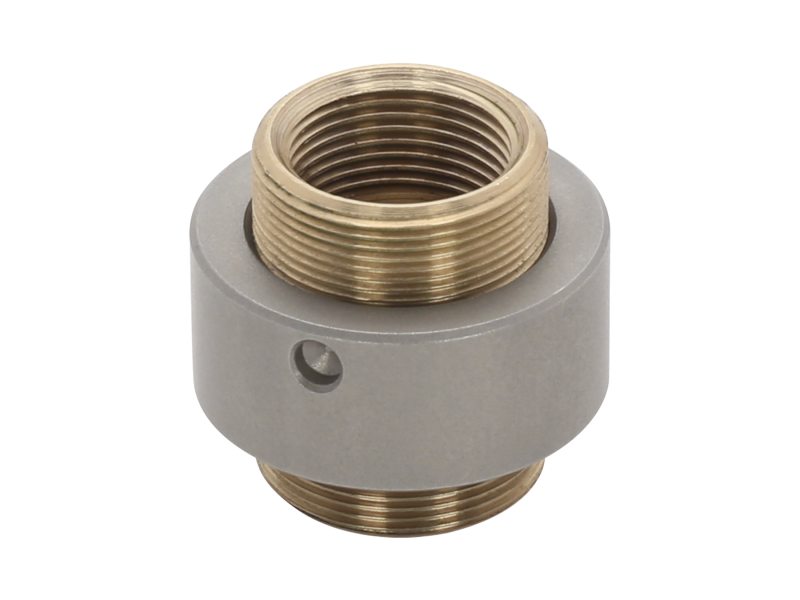

ADAPT-TRAActuator Adapter, TRA6 & TRA12, Opto-Mechanical Components	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$90

Frequently Purchased Together

Description	Compatibility	Avail.	Price
SMC100PPMotion Controller, Single-axis Stepper Motor	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,452
SMC-PS80Power Supply, SMC100 Series, 80W, 100-240 VAC, 47-63 Hz, 1.9 A max.	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$178
SMC-USBUSB Interface, Includes USB to COM Port Adapter & RS-232-C Cable	UNIVERSAL	In Stock	$139
TRA25PPDMotorized Actuator, Miniature, 25mm Travel, Stepper, 25-pin D-Sub	UNIVERSAL	In Stock	$1,167
ESP302-3NMotion Controller & Driver, 3-Axis, Ethernet, RS232	UNIVERSAL	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$5,970
2901Quadrant Cell Photoreceiver, Silicon, 190-1050 nm, 8-32/M4 Thread	UNIVERSAL	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,380
M-562-XYZXYZ Linear Stage, ULTRAlign, 12.7 mm, Right-Handed, M4 and M6	METRIC	3 Weeks FREE 2-day shipping on thousands of products on Newport.com Learn More	$3,048

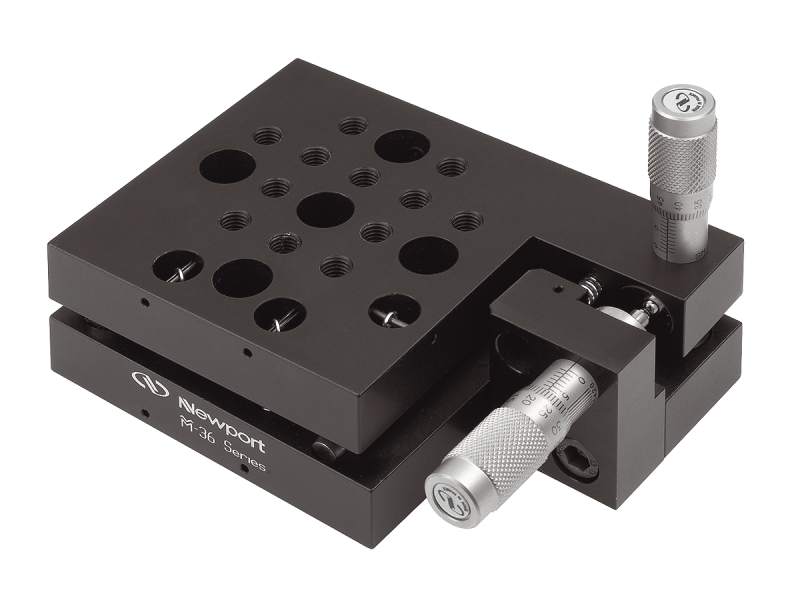

M-36Tilt and Rotation Platform, Includes SM-13 Micrometers, M6 Thread	METRIC	In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$731
