NewStep Miniature Linear Actuator

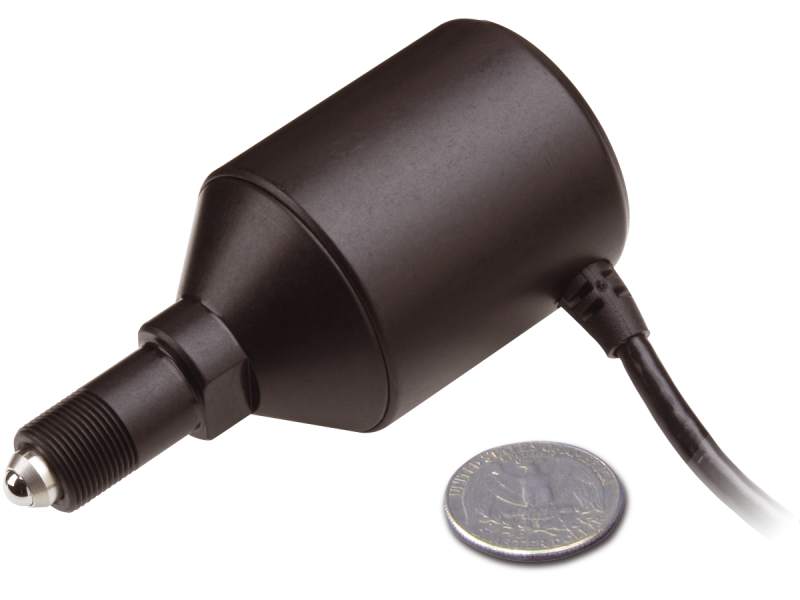

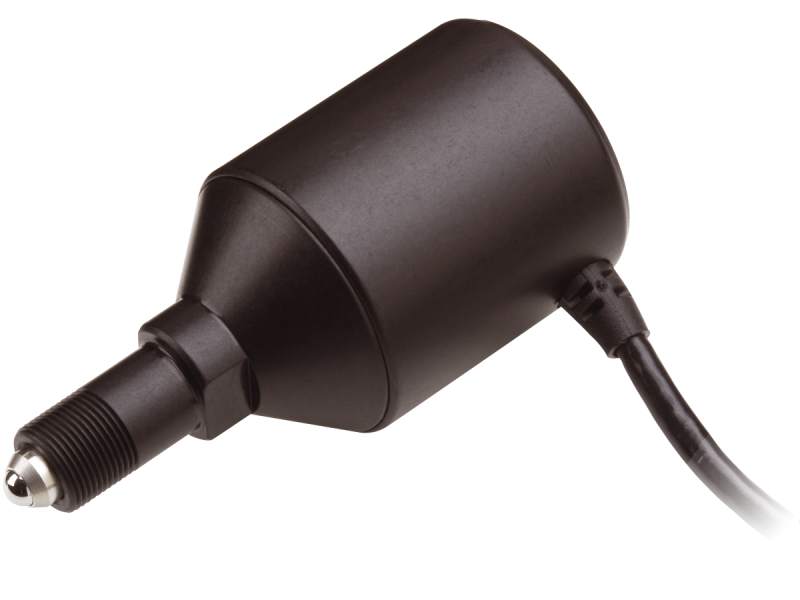

The NSA12 boasts the most compact build and the lowest costing stepper motor actuator. It is used for easily motorizing mirror mounts in confined spaces. If you need a controller for this actuator see our CONEX-NSA12 integrated solution. Newport does not offer a stand-alone controller for this model.

Lowest cost
Most compact
Integrated optical limit switch prevents component and motor damage
Non-rotating tip
Vacuum compatible versions to 10^-6 hPa available

See All Features

Showing 2 of 2 total products

Compatibility:

	Compare	Description	Compatibility	Drawings, CAD & Specs	Axial Load Capacity (+Cx)	Travel Range	Minimum Incremental Motion	Maximum Speed	Avail.	Price
		NSA12Motorized Linear Actuator, 11 mm Travel, Micro Step Drive	UNIVERSAL		0 N	11 mm	0.20 µm	0.9 mm/s	In Stock	$930
		NSA12V6Motorized Linear Actuator, 11 mm Travel, Vacuum Compatible	UNIVERSAL		0 N	11 mm	0.20 µm	0.45 mm/s	In Stock	$1,627

Specifications

Models
Axial Load Capacity (+Cx)	0 N	0 N
Inverse Axial Load Capacity (-Cx)	-28 N	-14 N
Travel Range	11 mm	11 mm
Minimum Incremental Motion	0.20 µm	0.20 µm
Maximum Speed	0.9 mm/s	0.45 mm/s
Bi-directional Repeatability (Typical)	±5.0 µm	±5.0 µm
Uni-directional Repeatability (Typical)	2.2 µm	2.2 µm
Drive Screw Pitch	0.3048 mm	0.3048 mm
Origin	Optical, at lower limit	Optical, at lower limit
Origin Repeatability	±2 µm	±2 µm
Limit Switches	Limit switch on the motor side	Limit switch on the motor side
Cable Length	3 m	3 m
Power Consumption	5 W	5 W

Features

Ideal for Mirror Mounts

With 11mm of travel and compact size, the NSA12 can be used to easily motorize manual positioning stages. For a complete list of compatible manual stages see Stage to Actuator Selection Guide.

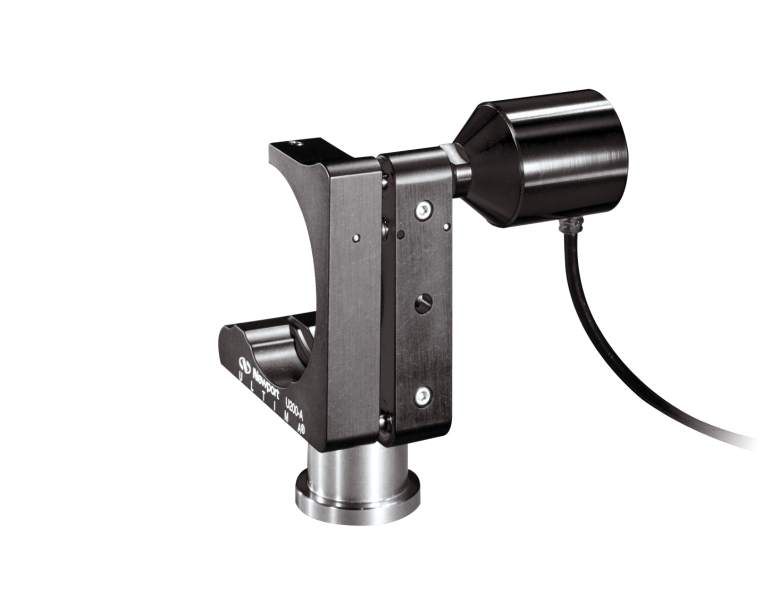

Ultima mirror mount with NSA12 actuators.

Vacuum Compatible Stepper Motor Versions

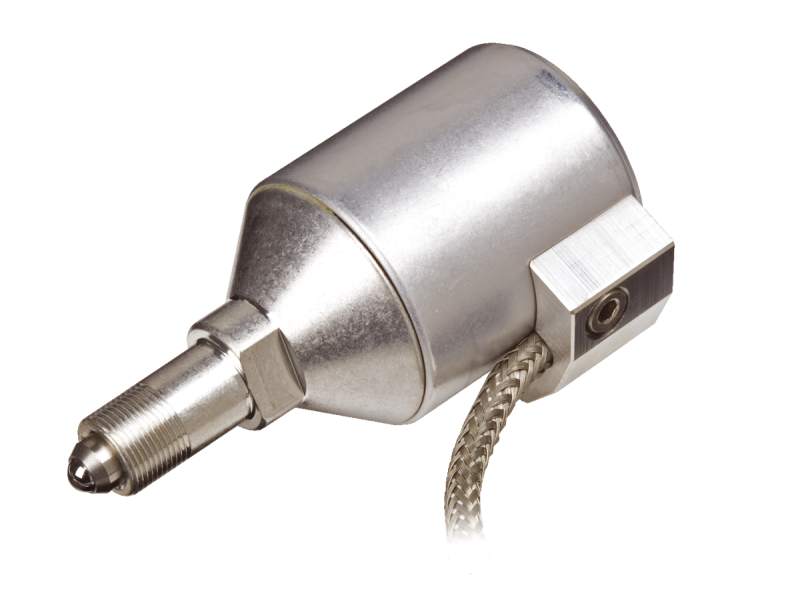

The NSA12V6 is the vacuum compatible stepper model specifically designed for vacuum applications up to10^-6 hPa.

NSA12V6 - Vacuum compatible up to 10-6 hPa

Compact Build

At 60 mm length by 30 mm diameter, the NSA12 is the smallest actuator on the catalog. It is great for small, confined spaces.

Non-rotating Tip

NSA actuators feature a non-rotating tip that prevents wear and avoids periodic motion variations during movement. Better positioning repeatability and eliminates tip wear.

Accessories

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		CONEX-NSA12Motorized Actuator, NSA12, CONEX-PP Integrated Controller	UNIVERSAL		In Stock FREE 2-day shipping on thousands of products on Newport.com Learn More	$1,611
		CONEX-NSA12V6Motorized Actuator, NSA12, CONEX-PP Integrated Controller, Vacuum	UNIVERSAL		In Stock	$2,479
