Kinematic Flip Base, Threaded M4 Mounting
Kinematic Flip Base, Threaded M4 Mounting
Model: M-PS-KF
Product Series Overview

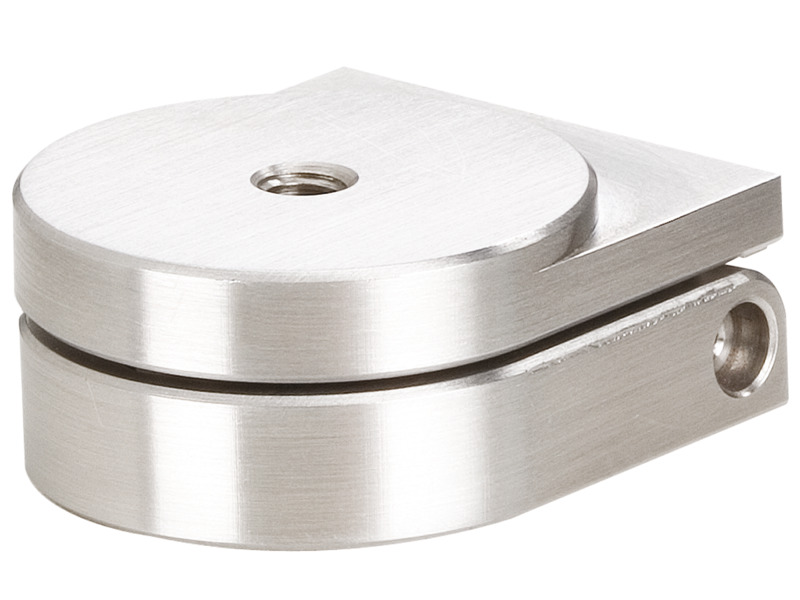

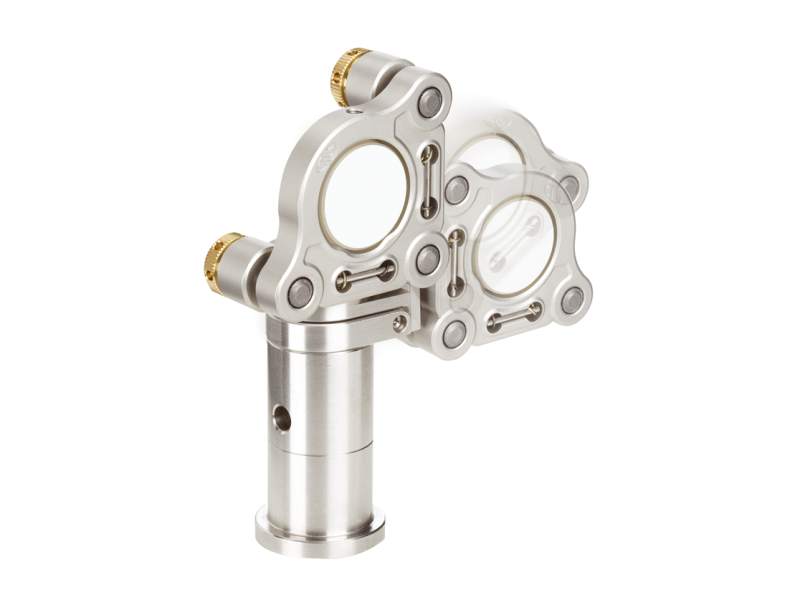

Kin-a-Flip Optical Mount BaseThe M-PS-KF Kin-a-Flip Kinematic Flip Base is ideal for quickly moving optical mounts in and out of beam paths with maximum repeatability. To optimize thermal expansion properties, they are constructed from 300 Series Stainless Steel. The M-PS-KF base is compact in size, extending overall height by only 12.7 mm and has a counterbored M4 thru-hole.
Resources & Downloads
2D Product Drawings
CATALOG DWG-PS-KF(106.7 kB, PDF)
Other
M-PS-KF RoHS Certificate(281.6 kB, PDF)
