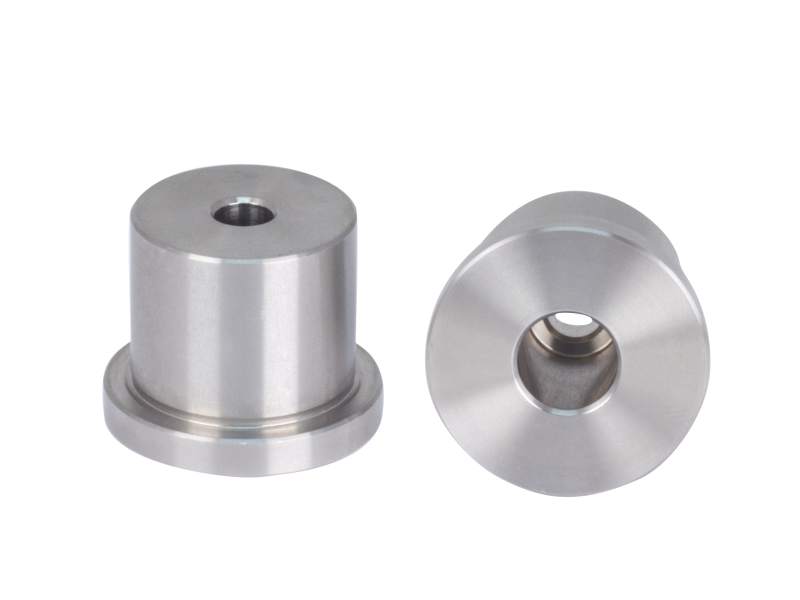

Optical Pedestal Base, 1.0 in. Height, 1 in. Diameter, 1/4-20 (M6) CLR
Optical Pedestal Base, 1.0 in. Height, 1 in. Diameter, 1/4-20 (M6) CLR
Model: PS-B-1

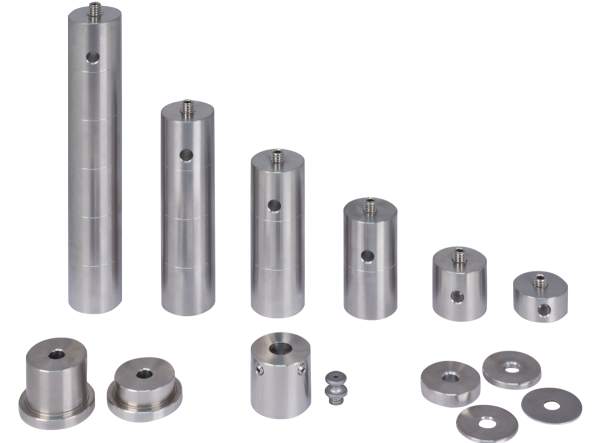

Product Series Overview

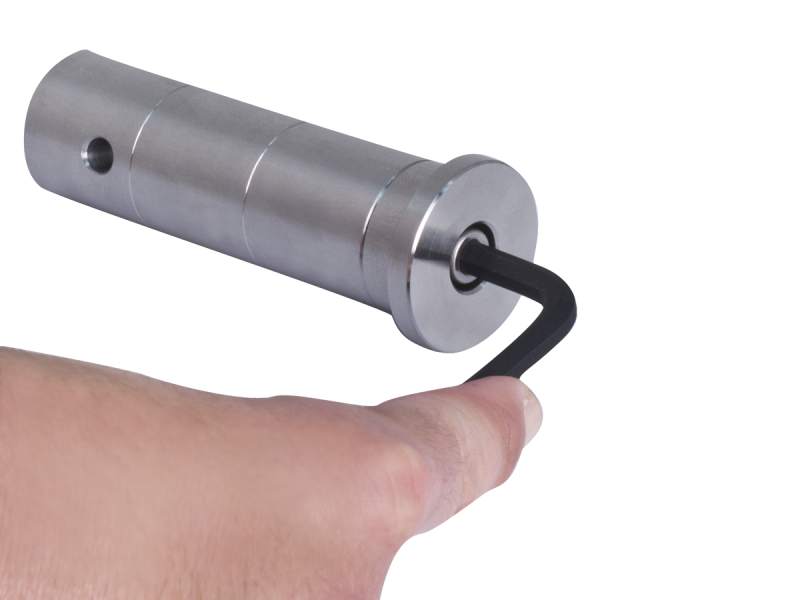

Pedestal Base AdaptersThe PS-B-1 Pedestal Base has a 1/4-20 thru-hole and can be used for turning TPS Series Posts into optical pedestals. 1.0 in. (25.4 mm) height.
Resources & Downloads
2D Product Drawings
PS-B Bases-S(141.8 kB, PDF)
Other
PS-B-1 RoHS Certificate(278 kB, PDF) PS-B-1_RoHS2021.pdf(681.3 kB, PDF)
