Polarizer Rotation Mount, A-LINE, 25.4 mm Diameter, M4 Thread
Polarizer Rotation Mount, A-LINE, 25.4 mm Diameter, M4 Thread
Model: M-LH-1PR
Product Series Overview

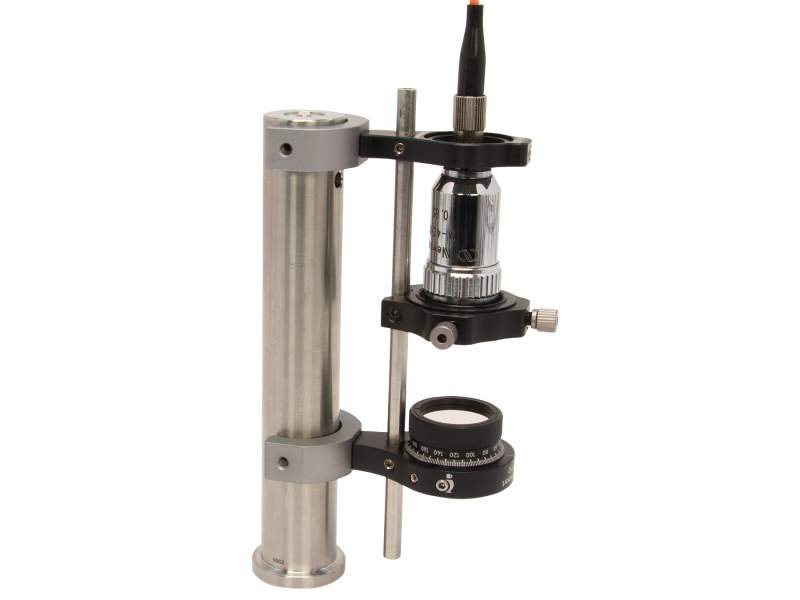

A-Line Adjustable Optic MountsThe A-LINE™ M-LH-1PR Polarizer Rotation Mount can be used with the rest of the A-Line™ Self-Aligning mounts to create a complex optical system. The rotator holds 1-in. (25.4 mm) polarizers and rotates manually over 360 degrees. The mount is equipped with a rotation lock. The front of the holder also has a special 6-mm alignment hole, which can be used with LH-GR Series Guide Rods for fast alignment of several A-LINE™ lens mounts. The LH-1PR incorporates an M4 threaded mounting hole for post mounting on Metric M-SP and TSP Series posts.
Resources & Downloads
2D Product Drawings
M-LH-1PR(531.4 kB, PDF)
Other
M-LH-1PR RoHS Certificate(277.9 kB, PDF) M-LH-1PR_RoHS2021.pdf(680.7 kB, PDF)
