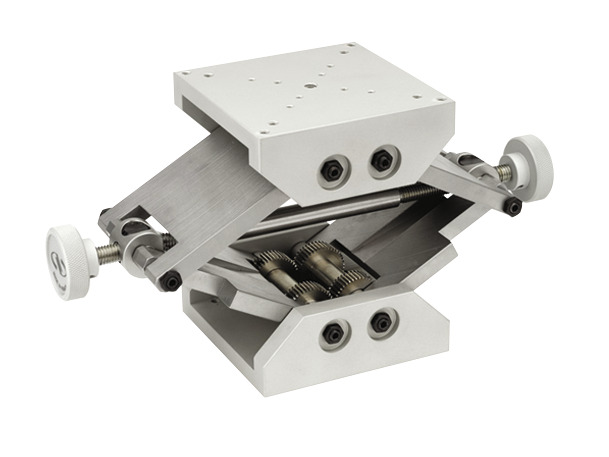

Lab Jack, Fast Travel, 105 mm Travel, 86 x 86 mm, 60 N, M3 and M4

The M-EN86 Fast Travel Lab Jack is a light-duty positioner with a 60 N load capacity. This lab jack is useful for 105 mm range positioning with high stability. For it's size, this lab jack has a significant amount of travel. Labjacks combine precision height adjustment in a stable design.

When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. Both the upper and lower mounting plates have identical threaded hole patterns that are compatible with many metric Newport products.

Vertical Adjustment From Either Side of Jack

The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
