Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3
Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3
Model: M-EN40
Product Series Overview

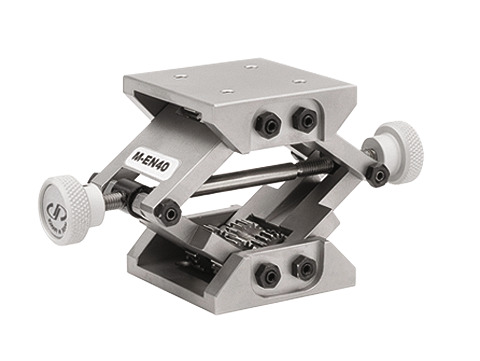

Compact, Fast Travel Lab JacksThe M-EN40 Fast Travel Lab Jack is a light-duty positioner with a 10 N load capacity. This lab jack is useful for 42 mm range positioning with high stability. For it's size, this lab jack has a significant amount of travel. Labjacks combine precision height adjustment in a stable design.
When choosing a labjack, be sure to consider the vertical travel requirements, the load to be positioned, and the size of the lab jack. The upper and lower mounting plates have hole patterns that are compatible with many metric Newport products.
Vertical Adjustment From Either Side of Jack
The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
Specifications
- Travel Range42 mm
- Load Capacity10 N
- Thread TypeM3
- Minimum Height25 mm
- Maximum Height67 mm
- Drive Screw Pitch0.7 mm
- 1.9 µm
- Platform Size40 x 40 mm
- MaterialAlloy Steel
- BearingsBushing
- Axes of TravelZ
- Drive LocationCenter drive
- Deflection Under Load0.005 mm/N
- Parallelism5 mrad over travel range
- Weight0.25 kg
