These fast travel lab jacks have dual adjustment knobs for a large travel range in a compact labjack size.
| Compare | Model | Drawings, CAD & Specs | Availability | Price | |||
|---|---|---|---|---|---|---|---|
|

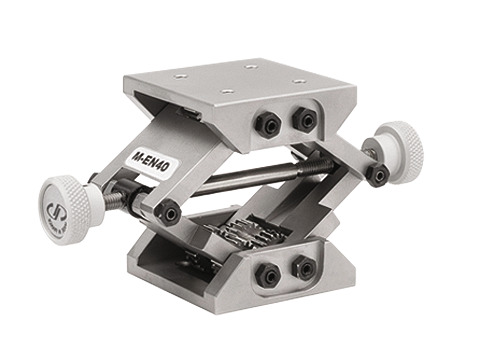

M-EN40 Lab Jack, Fast Travel, 42 mm Travel, 40 x 40 mm, 10 N Load, M3 |
In Stock
|
$1,042 |
|
|||
|
M-EN60 Lab Jack, Fast Travel, 70 mm Travel, 60 x 60 mm, 20 N Load, M3 |
2 Weeks
|
$1,245 |
|
|||
|
M-EN86 Lab Jack, Fast Travel, 105 mm Travel, 86 x 86 mm, 60 N, M3 and M4 |
In Stock
|
$1,371 |
|
|||
|
M-EL80 Lab Jack, Fast Travel, 60 mm Travel, 80 x 120 mm, 80 N Load, M4 |
|
$972 |
|
|||
|

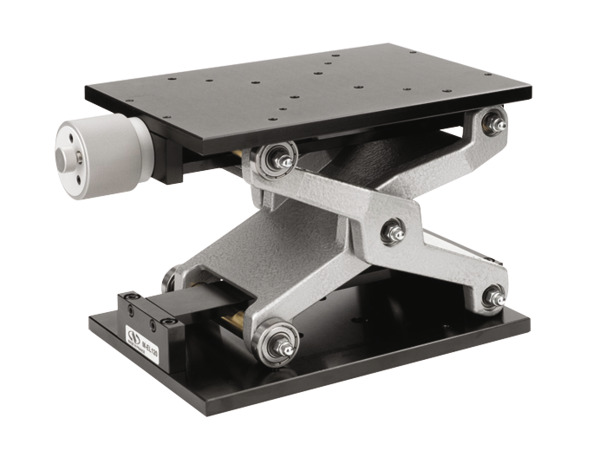

M-EL120 Lab Jack, Fast Travel, 120 mm Travel, 160 x 240 mm, 500 N, M5 and M6 |
In Stock
|
$1,735 |
|
| Models |
|
|
|
|
|
|
|---|---|---|---|---|---|---|
| Load Capacity | 10 N | 20 N | 60 N | 80 N | 500 N | |
| Travel Range | 42 mm | 70 mm | 105 mm | 60 mm | 120 mm | |
| Minimum Height | 25 mm | 45 mm | 65 mm | 53 mm | 100 mm | |
| Maximum Height | 67 mm | 115 mm | 170 mm | 113 mm | 220 mm | |
| Platform Size | 40 x 40 mm | 60 x 60 mm | 86 x 86 mm | 80 x 120 mm | 160 x 240 mm | |
| Thread Type | M3 | M3 | M3 and M4 | M4 | M5 and M6 | |
| Material | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel | Alloy Steel | |
| Bearings | Bushing | Bushing | Bushing | Bushing | Bushing | |
| Drive Screw Pitch | 0.7 mm | 1.0 mm | 1.25 mm | 1.0 mm | 1.5 mm | |
| Sensitivity | 1.9 µm | 2.8 µm | 3.5 µm | 2.8 µm | 4.2 µm | |
| Deflection Under Load | 0.005 mm/N | 0.005 mm/N | 0.005 mm/N | 0.01 mm/N | 0.01 mm/N | |
| Parallelism | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range | 5 mrad over travel range | |
| Weight | 0.25 kg | 0.9 kg | 1.85 kg | 1.79 kg | 11.2 kg |
The geared linkages on these lab jacks ensure controlled symmetrical movements which make the stage more stable over time.
The EN series lab jacks have adjustment knobs on both sides for better accessibility no matter what orientation it is mounted.
