Mounting Bridle, M-UTR80 to M-MVN80, M-TGN80 or M-UMR8, 7.6 mm Height, Qty 4

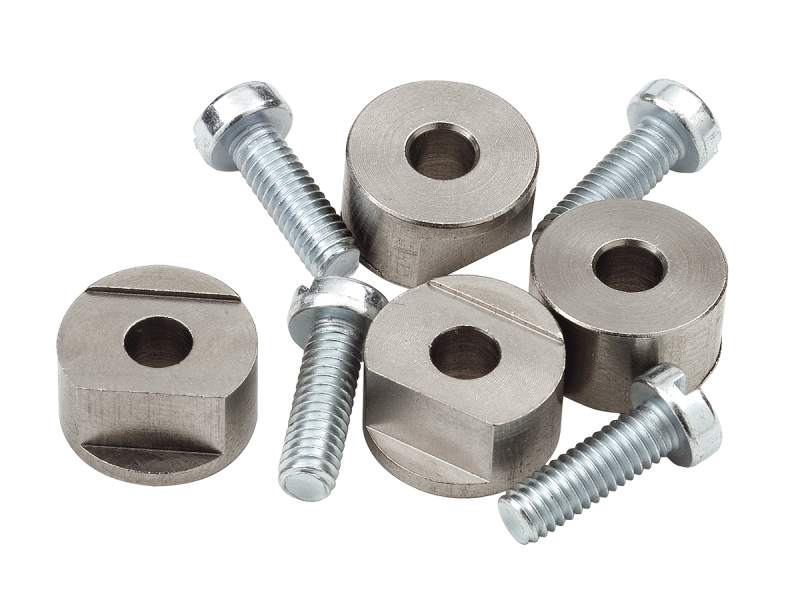

The M-BR4 Mounting Bridle secures round base components such as a SL, SK51, M-TTN80, M-UTR80 or VGM Series stages to a similar size linear and rotary positioning devices such as a M-MVN80, M-TGN80, M-BRM120 and M-MTM. Much like motor clamps, precision machined tabs on the steel bridles insert into a groove around the base of the component to be mounted. In some cases, the base plate of the component to be mounted must be removed for proper usage. M-BR4 bridles are sold in sets of four, and have a 0.30 inch height.
