Mounting Bridle, SL or VGM Mounts to Metric Table, 100 mm, Qty 4
Mounting Bridle, SL or VGM Mounts to Metric Table, 100 mm, Qty 4
Model: M-BR62
Product Series Overview

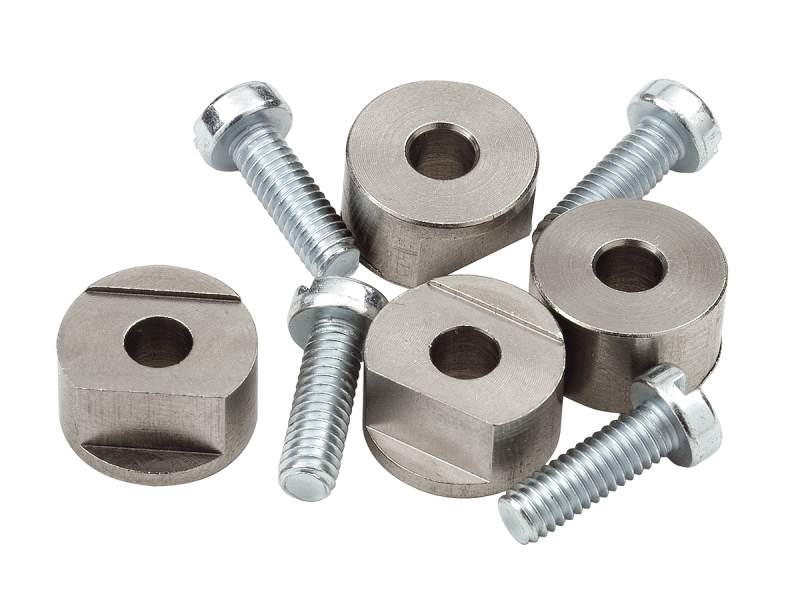

Mounting BridlesThe M-BR62 Mounting Bridle secures round base components such as a SL Series, M-TTN80 or VGM Series stage to an optical table. Much like motor clamps, precision machined tabs on the steel bridles insert into a groove around the base of the component to be mounted. In some cases, the base plate of the component to be mounted must be removed for proper usage. BR bridles are sold in sets of four, and have a 100 mm diameter.
Resources & Downloads
2D Product Drawings
BR Series DWG-S(106.5 kB, PDF)
Other
M-BR62 RoHS Certificate(278.5 kB, PDF)
