LIDA-SRS-KIT-220V Radiometry System

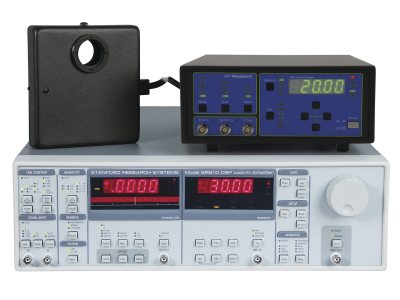

The LIDA-SRS-KIT-220V is a Lock-In Digital Amplifier (LIDA) system. It extracts very small signals obscured by noise sources many times larger by locking into the specific modulation frequency of your desired signal. The system removes background signals through phase sensitive detection. A broad selection of calibrated detectors with built-in preamplifiers is available for use with this system, allowing optical measurements to be made from UV to IR.

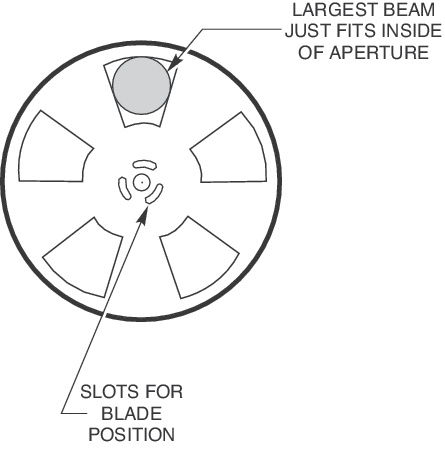

The chopper system provides an optical chopper controller with tunable frequencies, and an enclosed chopper head with four chopper wheels of varying aperture selections.

The system includes:

SR810 lock-in digital amplifier pre-configured for 220 VAC
Latest version of Oriel TracQ Basic radiometry software
75160NF Optical Chopper System
51-10-010 GPIB/USB adapter for readout/control with a computer via IEEE-488 interface
70016 BNC cable, 6 ft.

Specifications

Technical Specs

Type

Radiometry System
Frequency Range

2 to 100 Hz
Sensitivity

2 nV to 1 V
Noise

6 nV / Hz E-1/2 at 1 kHz
Amplifier Output

± 10 V
Dynamic Reserve

> 100 dB (without pre-filters)

Connector Type

BNC, GPIB-USB
Power Requirements

220-240 VAC, 50/60 Hz
Weight

30 lbs. (13.6 kg)
Dimensions

17 in. W x 5.25 in. H x 19.5 in. L (431 mm x 133 mm x 495 mm)

Type

Radiometry System
Frequency Range

2 to 100 Hz
Sensitivity

2 nV to 1 V
Noise

6 nV / Hz E-1/2 at 1 kHz
Amplifier Output

± 10 V
Dynamic Reserve

> 100 dB (without pre-filters)

Connector Type

BNC, GPIB-USB
Power Requirements

220-240 VAC, 50/60 Hz
Weight

30 lbs. (13.6 kg)
Dimensions

17 in. W x 5.25 in. H x 19.5 in. L (431 mm x 133 mm x 495 mm)

Resources & Downloads

Manuals

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

75150-1050-366 (496.4 kB, PDF)
75160NF_CTRL_REAR (195.2 kB, PDF)
75160NF_CTRL_SIDE (89 kB, PDF)
75160NF_CTRL_FRONT (189.9 kB, PDF)

Software

75160NF Chopper Software and API v1.0.1 (5.8 MB, ZIP)

Literature

Oriel LIDA-SRS-KIT Radiometry System Datasheet (663.5 kB, PDF)

Related Products

Sparepart

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		70016 Cable, BNC Standard, 6 Foot (1.8 Meter) Length	UNIVERSAL		In Stock	$50

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		LIDA-SRS-KIT-120V Radiometry System, Lock-In Digital Amplifier, 100 to 120 VAC	UNIVERSAL		6 Weeks	$16,450

Compatible Detectors

Description	Compatibility	Avail.	Price
DET-L-SIUV-R-C UV-Si Photodiode, Transimpedance Amplifier, 200-1100 nm, 10 x 10 mm, NIST	IMPERIAL	Contact Us	$2,495
DET-L-SIUV-T-C UV-Si Photodiode, Amplified, 200-1100 nm, 1-stage TE cooled, 5 mm, NIST	IMPERIAL	Contact Us	$4,095
DET-L-GE-R-C Ge Photodiode, Amplified, 700-1800 nm, 5 mm, NIST Calibration	IMPERIAL	In Stock	$3,495
DET-L-GE-T-C Ge Photodiode, Amplified, 700-1800 nm, 2-stage TE, 5 mm, NIST Calibration	IMPERIAL	In Stock	$4,195
DET-L-PBS-R-U PbS Photodiode, 3 x 3 mm, 700-3000 nm, Supply and AC Coupled Pre-amplifier (RoHS and / or CE Pending)	IMPERIAL	In Stock	$3,095
DET-L-PYC5-R-P Pyroelectric Detector, Lithium Tantalate, 2 mm, FET Amplifier, 0.45-9 µm	IMPERIAL	Contact Us	$1,905
DET-L-PYK5-R-P Pyroelectric Detector, Lithium Tantalate, 2 mm, FET Amplifier, 0.60-50 µm	IMPERIAL	Contact Us	$2,005

Radiometry System, Lock-In Digital Amplifier, 220 to 240 VAC
