PbS Photodiode, 3 x 3 mm, 700-3000 nm, Supply and AC Coupled Pre-amplifier
Model: DET-L-PBS-R-U
Product Series Overview

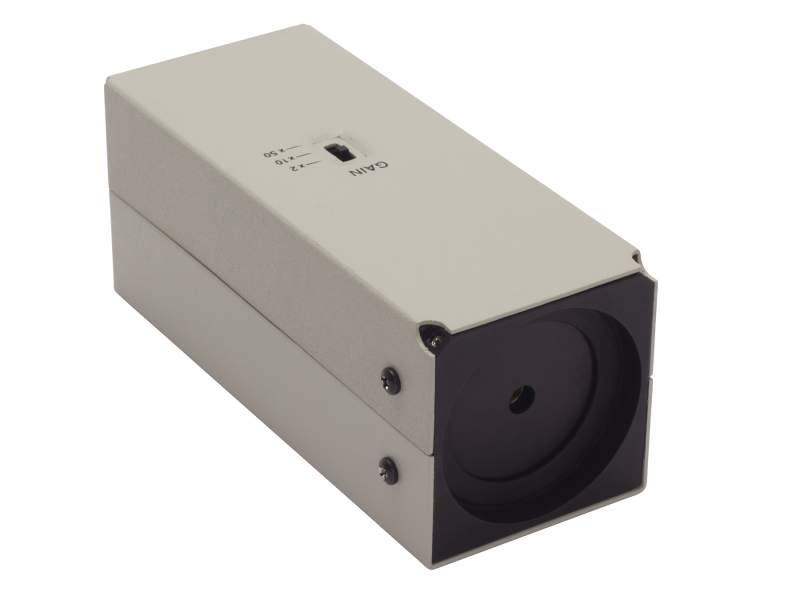

Flange Mount Photodiode SensorsThe DET-L-PBS-R-U detector for LIDA™ houses a Lead sulfide detector w/integrated voltage supply and AC coupled pre-amplifier. The integrated power supply provides a 100 V bias of the PbS detector and the pre-amplifier allows for adjustable gains of x2, x10, and x50 with up to 8 kHz bandwidth capability. Wavelengths from 0.7 to 3 μm can be detected.
To supply the required voltage input, consider the 70703 or 70709 Laboratory Power Supply. This is a simple, low cost laboratory power supply capable of supplying the required +5 V to power the built-in bias supply and ± 15 V to power the integrated pre-amplifier of the DET-L-PBS-R-U.

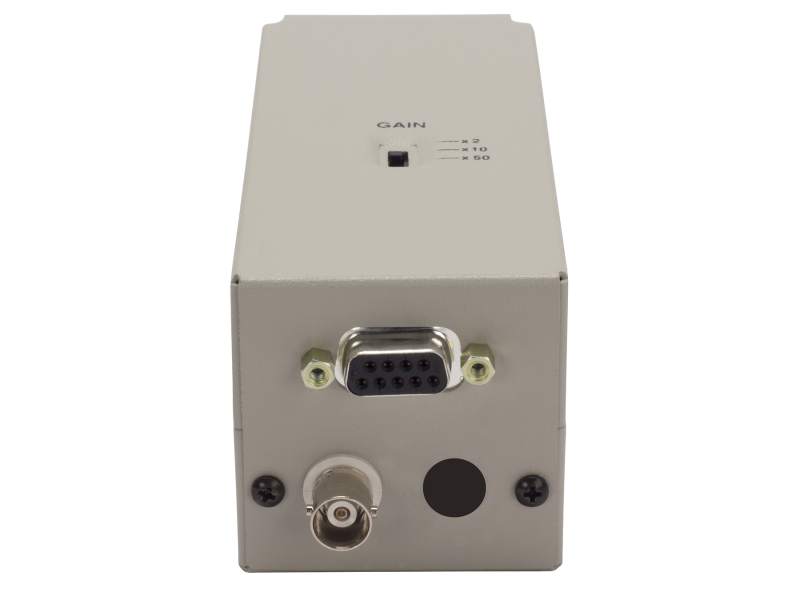

This flange mounted photodiode sensor provides a BNC connector for signal output. The 1.5 inch female flange simplifies the integration to one of our many Oriel light sources and monochromators.
Specifications
- TypePbS Photodiode
- Detector TypeFlange Mount Photodiode
- Gain2 V/A, 10 V/A, 50 V/A
- Detector InputFree Space
- Detector MaterialLead Sulfide
- AmplifiedYes

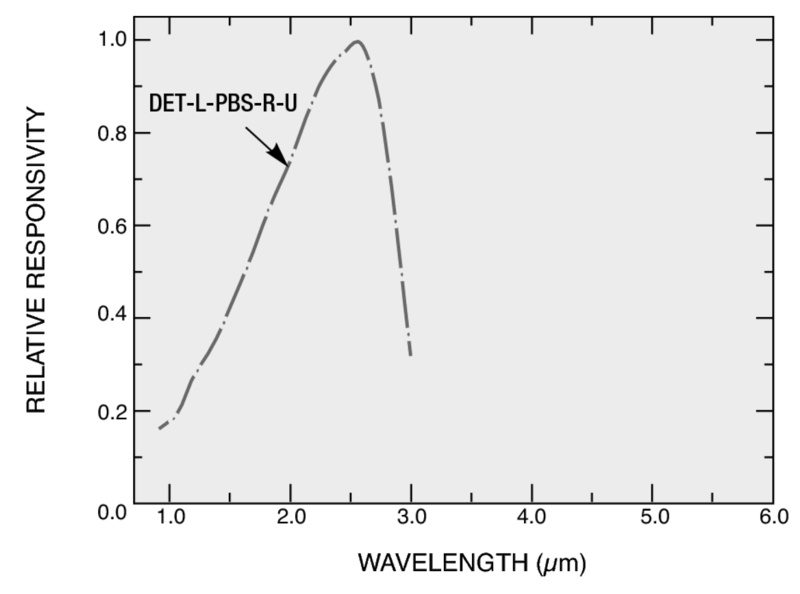

- Spectral Range700-3000 nm
- Connector TypeBNC (signal), LIDATM (power)
- Power Requirements±5 to ±15 VDC
- Bandwidth10 Hz-8 kHz
- Bias Voltage100 V
- Dimensions52.3 x 52.3 x 127.0 mm
- TE CooledNo
- Sensor Size3 x 3 mm
- Flange Type1.5 Inch Series Female Flange
- CalibratedNo
Resources & Downloads
2D Product Drawings
DET-L-PBS-R-U Drawing.pdf(1.2 MB, PDF)
