UV-Si Photodiode, Transimpedance Amplifier, 200-1100 nm, 10 x 10 mm, NIST

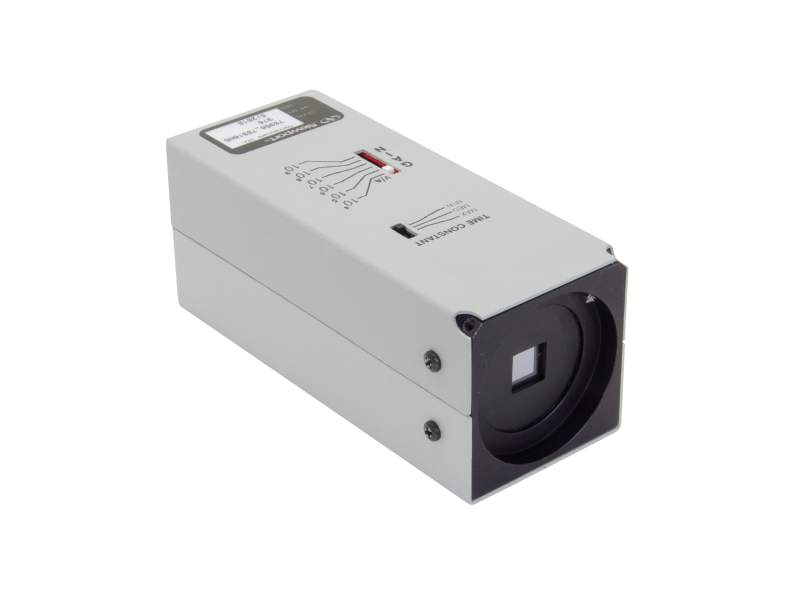

The DET-L-SIUV-R-C Silicon Photovoltaic Detector for LIDA™ houses an unbiased, photovoltaic mode operated photodiode coupled to a trans impedance amplifier. The internal 10 mm x 10 mm active area, UV-enhanced Silicon photodiode and low-noise trans impedance amplifier provides for excellent light detection performance over 200-1100 nm, with the trans impedance amplifier providing a gain of 10⁴ V/A to 10⁹ V/A over 0.01 Hz-100 kHz frequencies. This detector includes a NIST traceable calibration, making it suitable for absolute measurements over its entire sensitivity range.

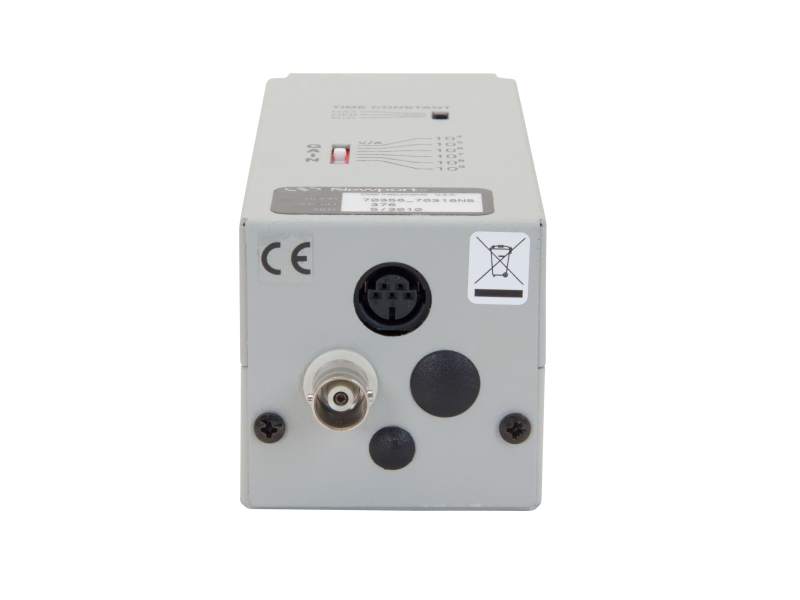

This flange mounted photodiode sensor provides a BNC connector for signal output.  The 1.5 inch female flange simplifies the integration to one of our many Oriel light sources and monochromators.
