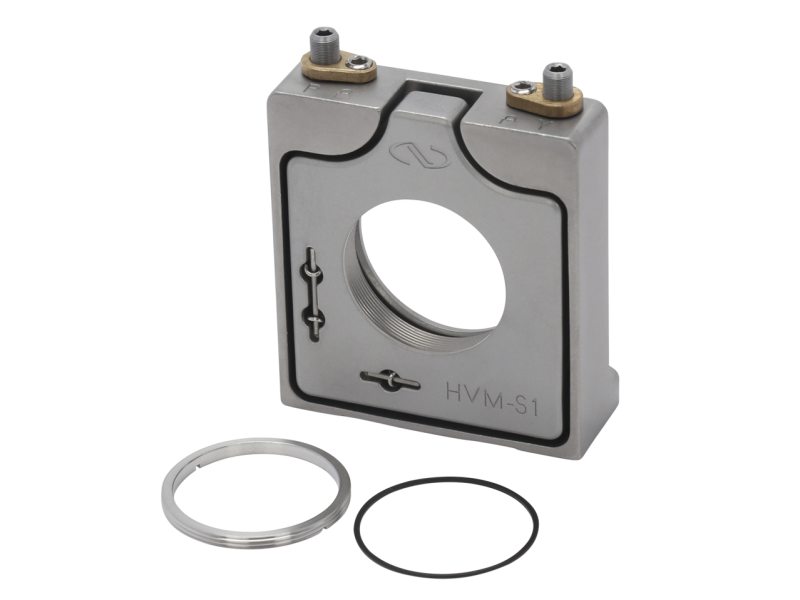

Mirror Mount, Industrial, Vertical Drive, Thin Optic, 1 in., 2 Locking Allen-Keys
The HVM-S1t vertical drive industrial mirror mount is unlike any optical mount in its class. Its body is made entirely from stainless steel, allowing it to be exceptionally stable. The HVM-S1t is designed to hold 1” thin optics and lenses up to 4 mm with a threaded retainer. Adjustments are made via two top-accessible 100-TPI adjusters which are lockable.
Resources & Downloads
2D Product Drawings
HVM-S1t(77.7 kB, PDF)
Other
HVM-S1T RoHS Certificate(0, PDF)
