Solid Insert, RSP-1T Rotation Stage
Solid Insert, RSP-1T Rotation Stage
Model: RSA-1TI
Product Series Overview

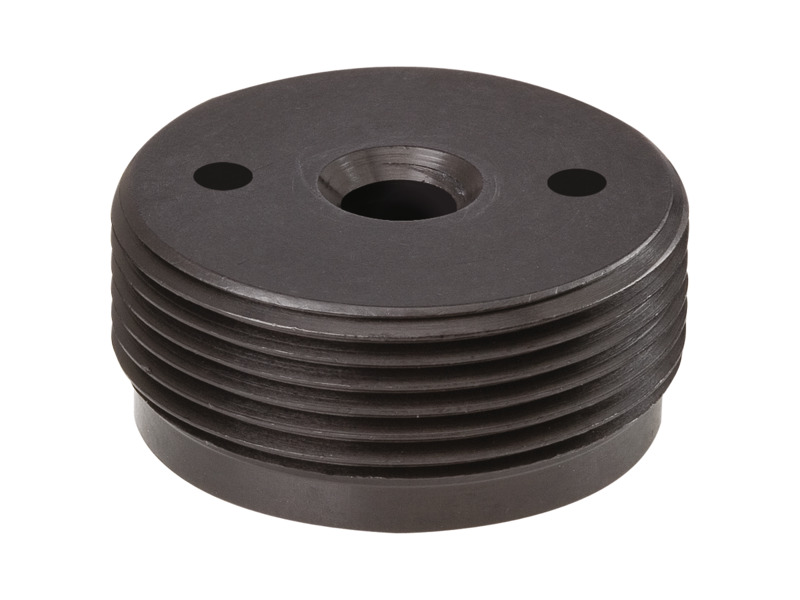

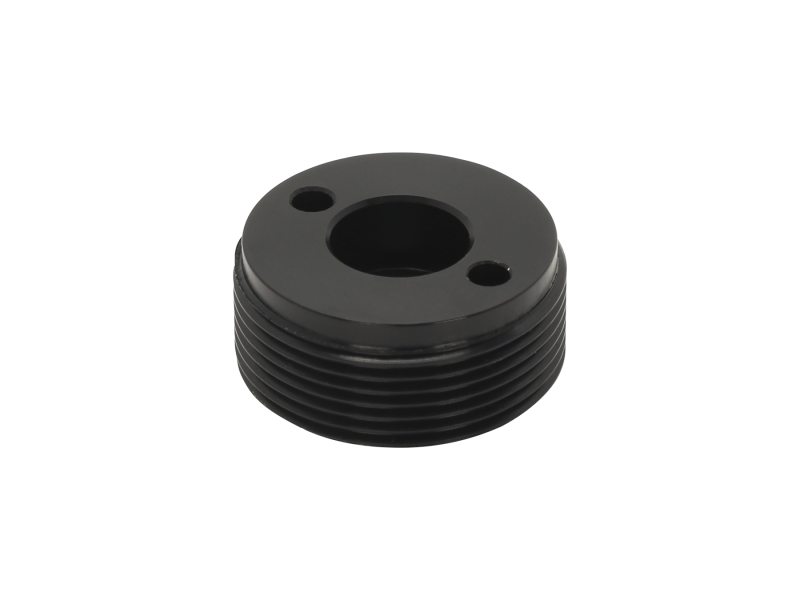

High Performance Optic Rotation MountsThe RSA-1TI Solid Insert features 1.063-20 external thread and central counterbored hole for 1/4-20 or M6 cap screws. It is designed for RSP-1T and 481 Series rotation stages to create a solid platform for on-axis mounting of optical component supported by an optical post.
Resources & Downloads
2D Product Drawings
481 Inserts-S(78.8 kB, PDF)
Other
RSA-1TI RoHS Certificate(277.8 kB, PDF) RSA-1TI_RoHS2021.pdf(680.2 kB, PDF)
