Solid Insert, RSP-2T Rotation Stage
Solid Insert, RSP-2T Rotation Stage
Model: RSA-2TI
Product Series Overview

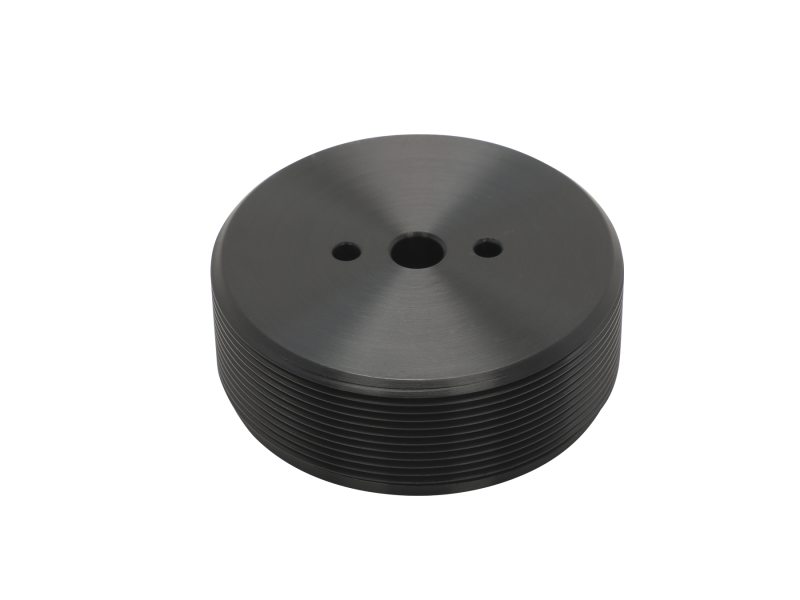

High Performance Optic Rotation MountsThe RSA-2TI Solid Insert features 2.063-20 external thread and central counterbored hole for 1/4-20 or M6 cap screws. It is designed for RSP-2T rotation stage to create a solid platform for on-axis mounting of optical component supported by an optical post.
Resources & Downloads
2D Product Drawings
RSA-2TI(140.9 kB, PDF)
Other
RSA-2TI RoHS Certificate(277.9 kB, PDF) RSA-2TI_RoHS2021.pdf(680.5 kB, PDF)
