UV Dielectric Mirror, 0.5 in. Diameter, 300-550 nm

Standard Borofloat 33 Dielectric Mirrors

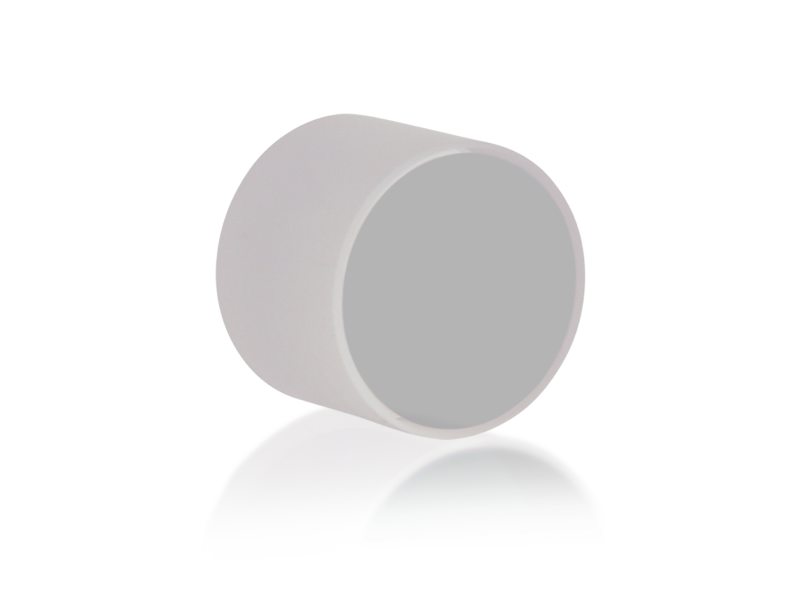

The 5150 UV Dielectric Mirror was designed for use with moderately powered UV and blue lasers such as argon-ion lasers. This 0.5 inch (12.7 mm) diameter Borofloat® 33 mirror has more than 99% reflectivity from 300 to 530 nm for any polarization with any angle of incidence from 0° to 45°.

Specifications

Technical Specs

Wavelength Region
UV
Wavelength Range
300-550 nm
Mirror Shape
Round
Diameter
12.7 mm
Mirror Size
Ø12.7 mm
Thickness
5.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter

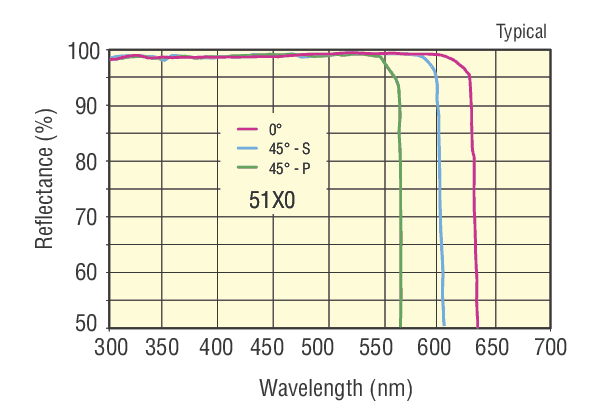

Reflectivity
R>99%, 300-550 nm
Damage Threshold
500 kW/cm² (cw), 0.3 J/cm² (10-ns pulse)

Wavelength Region
UV
Wavelength Range
300-550 nm
Mirror Shape
Round
Diameter
12.7 mm
Mirror Size
Ø12.7 mm
Thickness
5.0 mm
Material
Borofloat® 33
Coating Type
Broadband Dielectric

Surface Quality
15-5 scratch-dig
Surface Flatness
λ/10 at 632.8 nm
Angle of Incidence
0-45°
Clear Aperture
≥central 80% of diameter
Reflectivity
R>99%, 300-550 nm
Damage Threshold
500 kW/cm² (cw), 0.3 J/cm² (10-ns pulse)
