Mirror Mount, Industrial, Vertical Drive, Rear Load, 1 in., 2 Locking Allen-Keys

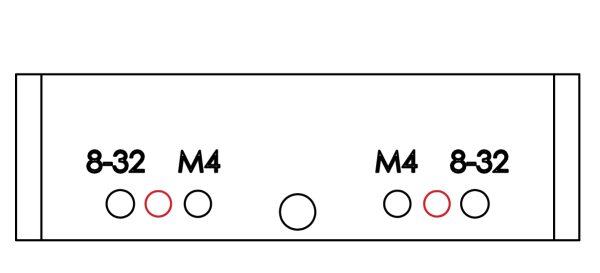

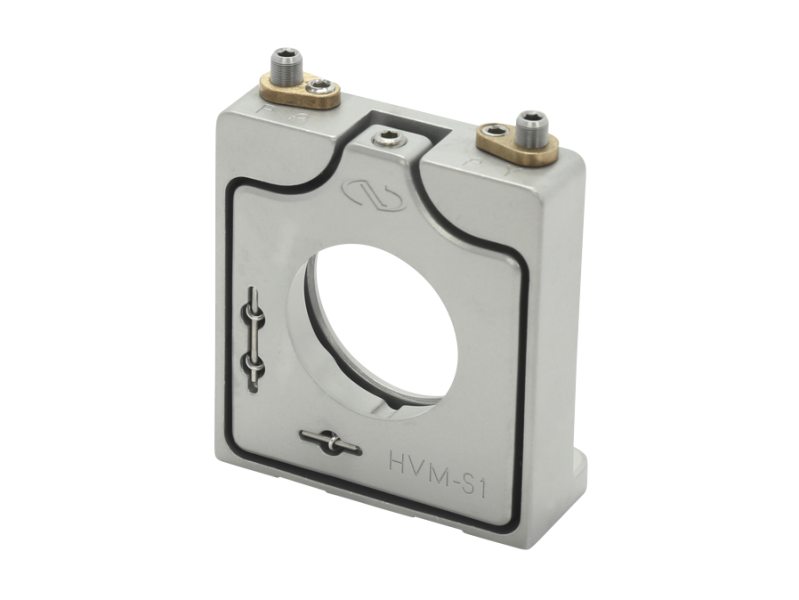

The HVM-S1R Vertical-Drive Industrial Mirror Mount is unlike any optical mount in its class. Its body is made entirely from stainless steel, allowing it to be exceptionally stable. The HVM-S1R is designed to hold 1” optics and is loaded from the rear. Adjustments are made via two top-accessible 100-TPI adjusters which are lockable. Two alignment pin holes are provided for keying the mounting position.
Resources & Downloads
2D Product Drawings
HVM-S1r(81.7 kB, PDF)
Other
HVM-S1R RoHS Certificate(0, PDF)
