Mirror Mount, Industrial, Vertical Drive, Rear Load, 0.5 in., 2 Locking Allen-Keys

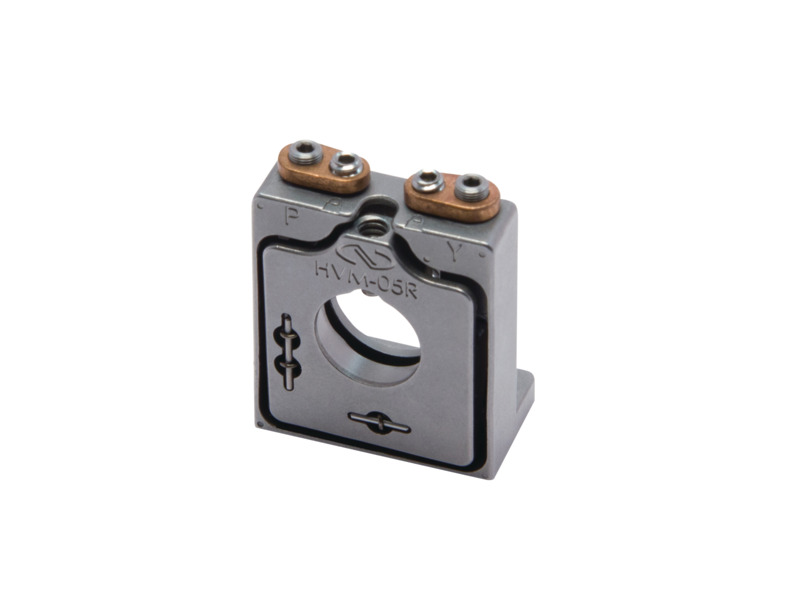

The HVM-05r Vertical-Drive Industrial Mirror Mount is unlike any optical mount in its class. Its body is made entirely from stainless steel, allowing it to be exceptionally stable and compact. It is only 0.31 in. (8 mm) thick. HVM-05r is designed to hold 0.5 in. optics and is loaded from the rear. It is adjusted with two top-accessible 80-TPI screws having 1/16-in (1.5 mm) hex keys. Each adjuster is labeled with the axis it moves; either P for pitch (elevation) or Y for yaw (azimuth). Designed for OEM applications, the HVM-05r can be mounted with any or all of three clearance holes located in the rear of the mount and has an additional 1/16-in. alignment pin hole on the base for keying the mounting position.
Resources & Downloads
2D Product Drawings
HVM-05R(221 kB, PDF)
Other
HVM-05R_RoHS2021.pdf(682.3 kB, PDF)
