Sorry, this product is no longer offered for sale. It was discontinued on Dec 8, 2021.

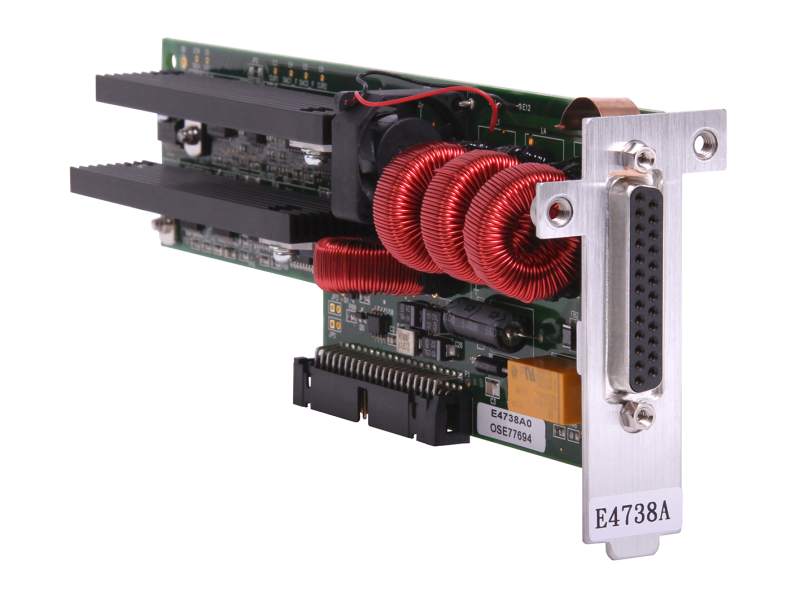

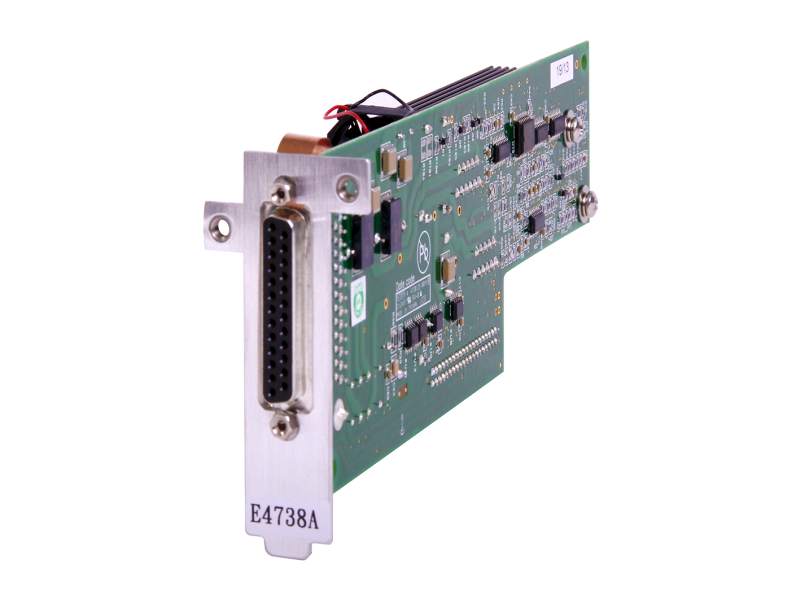

Motion Driver, 3 A, ESP301, Stepper and DC Servo

Model: E4738A

Product Series Overview

ESP302 Motion Controller Accessories

The E4738A is a single axis driver card compatible with the ESP301 controller. It can drive 2 or 4-phase stepper and brush DC motors up to 3A, 48V per axis. For proper and safe installation, refer to the ESP301 Users Manual, Section E.1 Adding Axes.

Specifications

Technical Specs

Drive Type

2 or 4-phase stepper and Brush DC, up to 3A/ 48V per axis
ESP Compatibility

ESP Stage Detection
Dimensions

419 x 305 x 83 mm

Weight

0.5 kg

Drive Type

2 or 4-phase stepper and Brush DC, up to 3A/ 48V per axis
ESP Compatibility

ESP Stage Detection
Dimensions

419 x 305 x 83 mm

Weight

0.5 kg
