Flipper Optic Mount, 2.0 in. Optic Diameter, M4

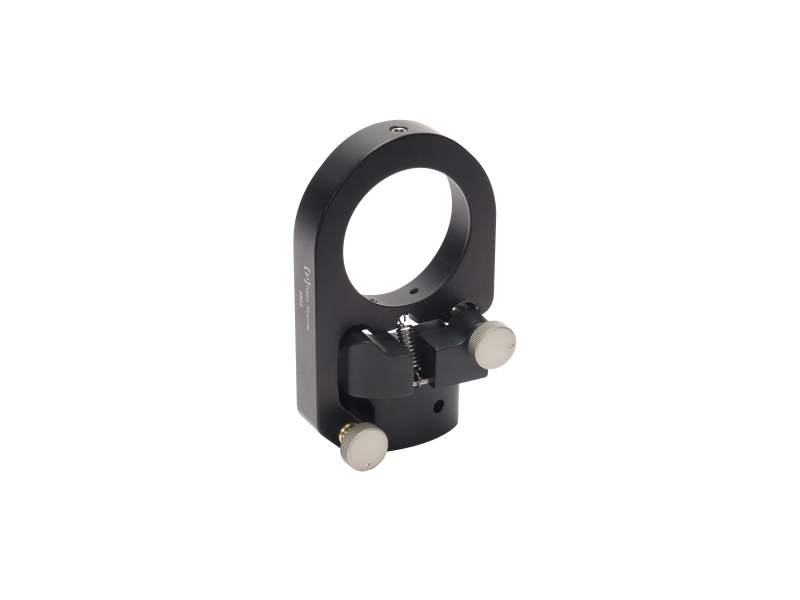

The 9892-M Flipper Optic Mount adds a hinge to a traditional 2.0 inch optic mount. The result is a mount that lets you move an optic into and out of your beam path easily and repeatably. Ideal for turning mirrors in multiplexed laser experiments, this mount eliminates many of the headaches associated with sharing a laser. Adjustment screws let you steer your beam, while a sapphire pad under the screw gives you better than 200-μrad repeatability between flips.

Specifications

Technical Specs

Type
Flipper Mount
Optic Diameter
50.8 mm
Thread Type
M4
Drive Type
Manual
Angular Range
±4°

Repeatability
<200 µrad
Resolution per 5 Degree Turn
<140 µrad

Type
Flipper Mount
Optic Diameter
50.8 mm
Thread Type
M4
Drive Type
Manual
Angular Range
±4°

Repeatability
<200 µrad
Resolution per 5 Degree Turn
<140 µrad

Resources & Downloads

3D Product Models

Download CAD Files

2D Product Drawings

9892b-Drawing(108.8 kB, PDF)
