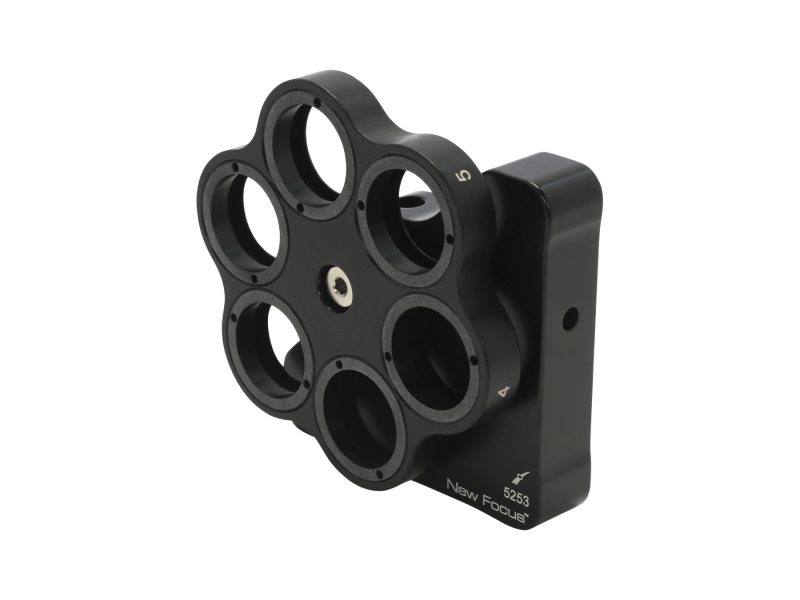

5253NF Indexed Filter Wheel

Indexed Filter Wheel, Six Position, 1.0 in. Diameter

Model: 5253NF

$310

In Stock

Compare

Add to List

Product Series Overview

Neutral Density Filter Wheels

The 5253NF Single Filter Wheel uses threaded Delrin® inserts to give you the flexibility to hold and easily swap any collection of 1.0 in. (25.4 mm) diameter filters or optics. The single six position filter wheel is mechanically indexed for precise positioning when switching from filter to filter.

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

4 mm
Number of Filters

6
Retaining Ring Thread

1.040-32

Mechanism

Retaining Ring
Mounting Threads

8-32 (M4) Thru
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

4 mm
Number of Filters

6
Retaining Ring Thread

1.040-32

Mechanism

Retaining Ring
Mounting Threads

8-32 (M4) Thru
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

5253b-Drawing (132 kB, PDF)
