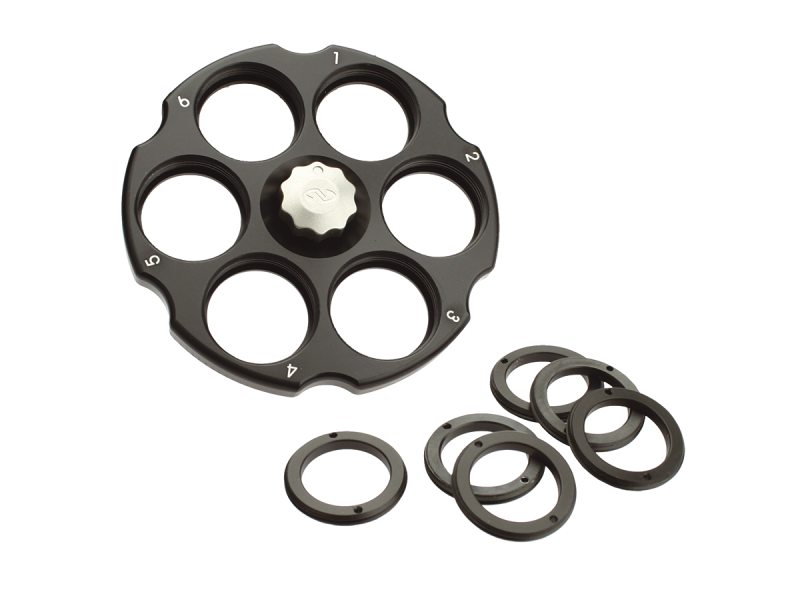

Optical Filter Wheel, Six Position. 1.0 in. Diameter, Req. FWM Hub

Optical Filter Wheel, Six Position. 1.0 in. Diameter, Req. FWM Hub

Model: FW1X6

$157

In Stock

Compare

Add to List

Product Series Overview

Indexed Optical Filter Wheels

The FW1X6 Filter Wheel securely holds 6 neutral density filters or any 1 inch (25.4 mm) optical component. This is a spare filter wheel for the FWM Series.

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

3.1 mm
Number of Filters

6
Retaining Ring

A-1.25-1RR (Included)

Retaining Ring Thread

1.063-20
Mechanism

Retaining Ring
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

3.1 mm
Number of Filters

6
Retaining Ring

A-1.25-1RR (Included)

Retaining Ring Thread

1.063-20
Mechanism

Retaining Ring
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

FWM-DWG-S (329.6 kB, PDF)

Other

FW1X6 RoHS Certificate (278.1 kB, PDF)
FW1X6_RoHS2021.pdf (681.7 kB, PDF)
