Optical Filter Wheel, Six Position, Indexed, Unobstructed, 1.0 in. Filters

Model: FWM1X6

$251

In Stock

Compare

Add to List

Product Series Overview

Indexed Optical Filter Wheels

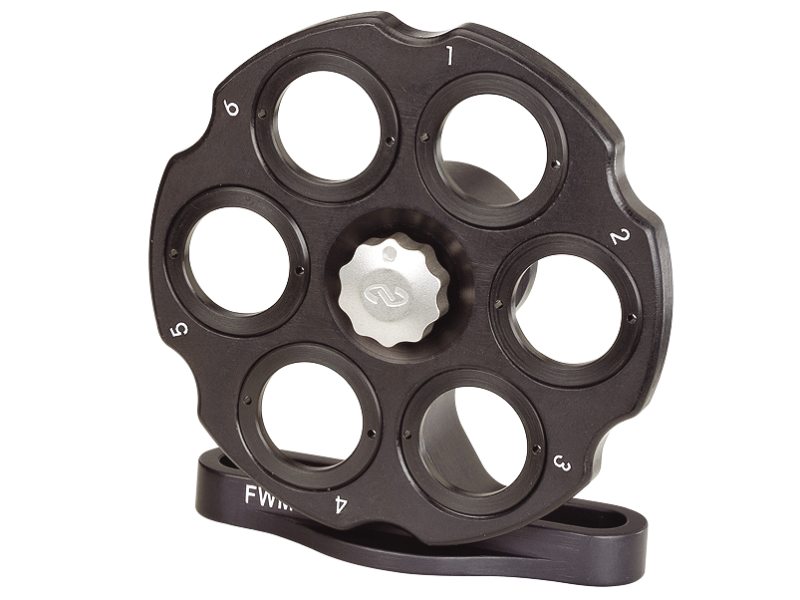

The FWM1X6 Indexed Filter Wheel Mount provides a compact structure to securely hold 6 neutral density filters or any 1 inch (25.4 mm) optical component. Three captured, spring-loaded index balls provide repeatable and wobble-free rotation of the filter wheel. The foundation mount itself has been designed to provide clear apertures for all six filters and optical heights of 1, 2 and 3 inch (25.4, 50.8, and 76.2 mm).

Specifications

Technical Specs

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

3.1 mm
Number of Filters

6
Retaining Ring

A-1.25-1RR (Included)
Retaining Ring Thread

1.063-20

Mechanism

Retaining Ring
Mounting Threads

1/4-20 Slot
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Filter Shape

Round
Filter Diameter

25.4 mm
Maximum Thickness

3.1 mm
Number of Filters

6
Retaining Ring

A-1.25-1RR (Included)
Retaining Ring Thread

1.063-20

Mechanism

Retaining Ring
Mounting Threads

1/4-20 Slot
Material

Anodized Aluminum
Filter Size Circular or Square

25.4 mm

Resources & Downloads

2D / 3D CAD Software

Download CAD Files

Drawings And Cad

FWM-DWG-S (329.6 kB, PDF)

Other

FWM1X6 RoHS Certificate (278.7 kB, PDF)
FWM1X6_RoHS2021.pdf (682.6 kB, PDF)

Related Products

Accessories

Description	Compatibility	Avail.	Price
AW-1 Adaptor Washers, 1/4-20 (M6) to 8-32 (M4), Qty 10	UNIVERSAL	In Stock	$19.40
BB-M Optical Beam Block, Tool Holder, Magnetic-Base, Medium	UNIVERSAL	In Stock	$35
SK-25A Black Oxide Screw Kit, 1/4-20, Assortment, Qty 261	UNIVERSAL	In Stock	$72
BDK-1 Ball Driver Allen Wrench Set, Includes 9 Ball drivers	IMPERIAL	In Stock	$38
SK-TA Thread Adaptor Set, English	UNIVERSAL	In Stock	$320

Similar

	Compare	Description	Compatibility	Drawings, CAD & Specs	Avail.	Price
		FWM1X12 Indexed Filter Wheel, Dual Six Position, Unobstructed, 1.0 in. Filters	UNIVERSAL		In Stock	$329

Compatible

Description	Compatibility	Avail.	Price
SP-3 Optical Post, 3.0 in. Height, 0.5 in. Diameter, 8-32 and 1/4-20 Thread	IMPERIAL	3 Weeks	$6
FSR-OD100 Neutral Density Filter, Absorptive, 25.4 mm, 1.0 OD at 546.1 nm	UNIVERSAL	In Stock	$40
PS-3 Optical Pedestal, 3.0 in. Height, 1.0 in. Diameter, 8-32 Thread	IMPERIAL	In Stock	$34
VPH-3 Optical Post Holder, No Slip, 3.0 in. Height, 0.5 in. Posts, 1/4-20	IMPERIAL	In Stock	$18
FWM Filter Wheel Mount Hub, Requires FW1X6 Filter Wheel	UNIVERSAL	In Stock	$171
