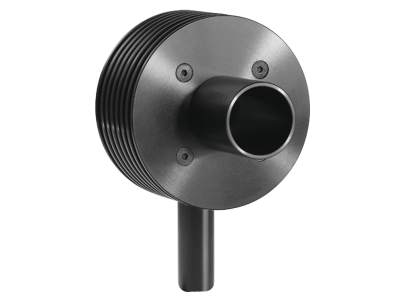

Thermopile Sensor, 10 W, 16 mm, 0.19-11 µm
The 919P-010-16 Thermopile Sensor is a general purpose laser power sensor for measuring laser power up to 10 W. It's BB absorber type is spectrally flat and covers the wavelength range 190 nm to 11 µm. It has an active diameter of 16 mm and can measure power from 10 mW to 10W and single shot energy from 6 mJ to 2 J. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.
Specifications
- Absorber TypeBB - Broadband General Purpose
- Detector TypeThermopile
- Spectral Range0.19 to 11 µm
- Maximum Measurable Power10 W
- Sensor SizeØ16 mm
- Maximum Power Density28 kW/cm²
- Maximum Energy Density<100 ns, 0.3 J/cm²
0.5 ms, 2 J/cm²
2 ms, 2 J/cm²
10 ms, 2 J/cm² - Power Noise Level0.2 mW
- Power Range10 mW - 10 W
- Minimum Energy6 mJ
- CoolingHeat Sink
- Connector TypeDB15
- Rise Time0.8 s
- Linearity±1 %
- Calibration Uncertainty±1.9%
- Repeatability±0.5 %
- Beam Size Dependence±0.5 %
- Detector Active Area2.01 cm²
- Operating Temperature Range15°C to 35°C, <70% RH, non-condensing
- Storage Temperature Range0°C to 50°C, <90% RH
- Cable Length1.5 m
- DimensionsØ65 x 33.5 mm
- Weight0.2 kg
- RoHSCompliant
