Thermopile Sensor, 3 W, 10 mm, 0.19-11 µm

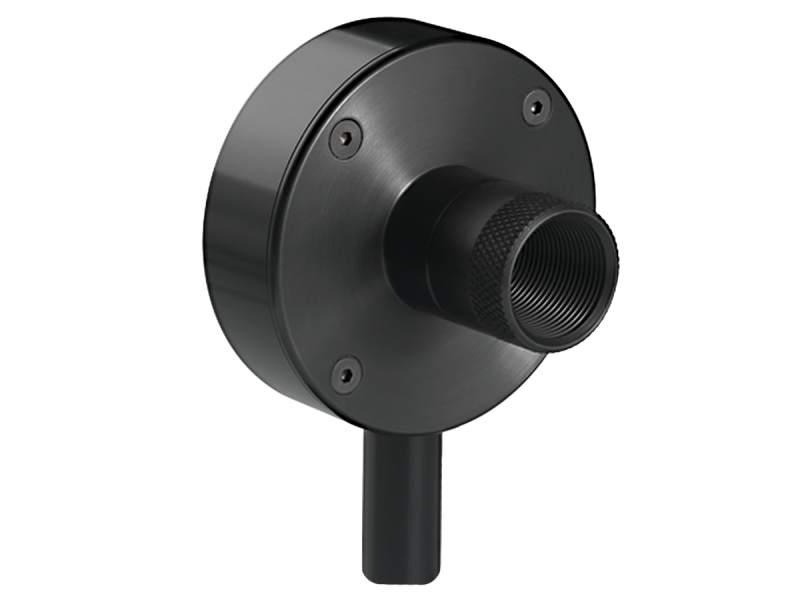

The 919P-003-10 High Sensitivity Thermopile Sensor is designed for high sensitivity with very low noise and drift. It has an active diameter of 9.5 mm and can measure optical power from 10 µW to 3 W and single shot energy from 20 µJ to 2 J. It BB absorber type is spectrally flat and covers the wavelength range from 190 nm to 11 µm. It has a 1/4-20 tapped hole for post or plate mounting and includes a 2.25 inch long 1/2 inch diameter post with a 1/4-20 tapped hole on both ends.
Specifications
- Absorber TypeBB - Broadband General Purpose
- Detector TypeThermopile
- Spectral Range0.19 to 11 µm
- Maximum Measurable Power3 W
- Sensor SizeØ9.5 mm
- Maximum Power Density1 kW/cm²
- Maximum Energy Density<100 ns, 0.3 J/cm²
0.5 ms, 1 J/cm²
2 ms, 2 J/cm²
10 ms, 4 J/cm² - Power Noise Level1 µW
- Power Range10 µW - 3 W
- Minimum Energy20 µJ
- CoolingHeat Sink
- Connector TypeDB15
- Rise Time1.8 s
- Linearity±1 %
- Calibration Uncertainty±1.9%
- Repeatability±0.5 %
- Beam Size Dependence±0.7 %
- Detector Active Area0.71 cm²
- Operating Temperature Range15°C to 35°C, <70% RH, non-condensing
- Storage Temperature Range0°C to 50°C, <90% RH
- Cable Length1.5 m
- DimensionsØ70 x 30 mm
- Weight0.2 kg
- RoHSCompliant
Resources & Downloads
3D Product Models
2D Product Drawings
919P-003-10(82.8 kB, PDF)
Technical Notes
Average and Peak Power Calculation(31.9 kB, PDF) A Shortcut for Calculating Power Density(35.2 kB, PDF)
Literature
919P Detector Datasheet(1.5 MB, PDF)
Other
919P series EU27 Declaration of Conformity(162.5 kB, PDF) 919 Series 1 RoHS Certificate(259.5 kB, PDF)
