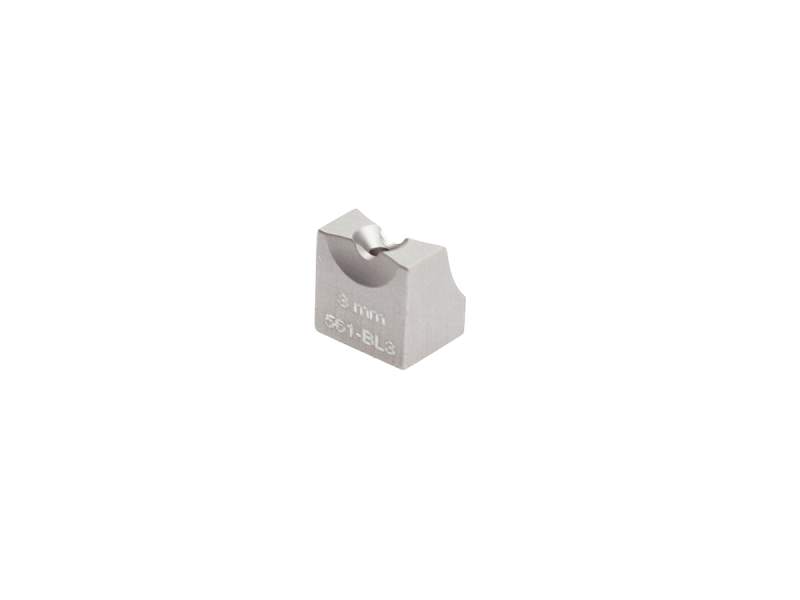

Ball Lens Module, 3 mm, 561 Series
Ball Lens Module, 3 mm, 561 Series
Model: 561-BL3
Product Series Overview
ULTRAlign Fiber Alignment AccessoriesThe 561-BL3 Ball Lens Module attaches 3 mm diameter ball lenses to a 561 Series stage. The ball lens module is gently held in a 561-MM Module Mount.
Resources & Downloads
2D Product Drawings
561-BL3-ENV-S(160.8 kB, PDF)
Other
561-BL3_RoHS2021.pdf(0, PDF)
